Σετ κλειδαριών πρόσθετα εξαρτήματα for BMW R45-R65LS..78-85 R45

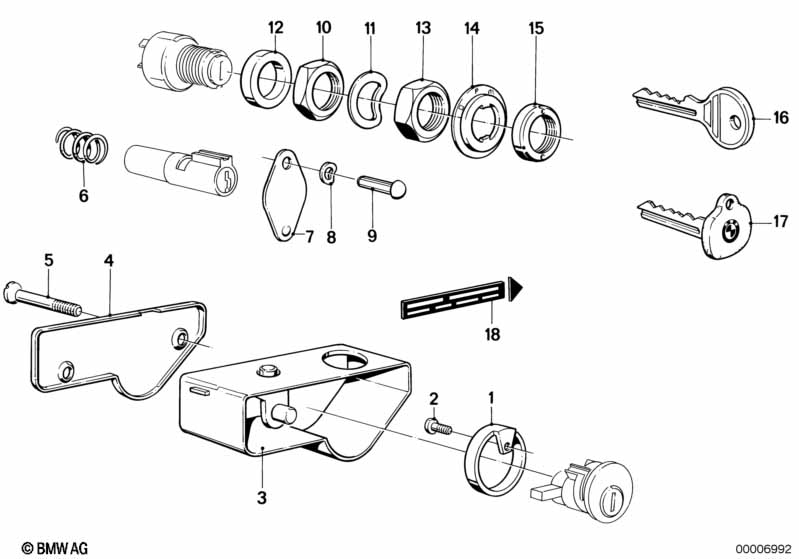

This Σετ κλειδαριών πρόσθετα εξαρτήματα technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Δακτύλιος | 1 | 51252309932 | $3.57 | Shop at ECS Tuning | |||||
| 02 | Βίδα οβάλ κεφαλής | M3X8-4.8-H-ZN | 1 | 07119907602 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Κλειδαριά | 1 | 51251230186 | $84.22 | Shop at ECS Tuning | |||||
| 04 | Πλάκα | 1 | 51251230194 | $6.26 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 05 | Κοχλίας οβάλ κωνικής κεφαλής | M5X40 | 2 | 07119928562 | $0.87 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 06 | Ελατήριο πίεσης | 1 | 32329016104 | $0.91 | Shop at ECS Tuning | |||||
| 07 | Καπάκι | 1 | 10/1981 | 32329016101 | $12.71 | Shop at ECS Tuning | ||||
| 08 | Ελατηριωτή ροδέλα | B4 | 1 | 10/1981 | 07119932100 | $0.56 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 08 | Ελατηριωτή ροδέλα | B4 | 1 | 10/1981 | 07119932030 | $0.51 | Shop at ECS Tuning | |||
| 08 | Ελατηριωτή ροδέλα | A3 | 1 | 10/1981 | 07119932009 | $0.55 | Shop at ECS Tuning | |||
| 09 | Καρφί ημικυκλικής εγκοπής | 4X10 | 1 | 10/1981 | 07119944651 | $0.47 | Shop at ECS Tuning | |||
| 09 | Καρφί ημικυκλικής εγκοπής | 3X9 | 1 | 10/1981 | 51251242647 | $1.09 | Shop at ECS Tuning | |||
| 10 | Περικόχλιο | 1 | 61321243278 | $7.00 | Shop at ECS Tuning | |||||
| 11 | Ελατηριωτή ροδέλα | 22.5X30-ZN | 1 | 63121357504 | $2.64 | Shop at ECS Tuning | ||||
| 12 | Δακτύλιος | 1 | 31421242397 | $1.94 | Shop at ECS Tuning | |||||
| 13 | Εξαγωνικό περικόχλιο | M22X1-CR | 1 | 61321243279 | $7.00 | Shop at ECS Tuning | ||||
| 14 | Πλάκα | 1 | 61321243655 | $6.67 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 15 | Δακτυλιοειδές περικόχλιο | 1 | 61321243268 | $7.57 | Shop at ECS Tuning | |||||
| 16 | Κανονικό κλειδί (μη κωδικ.) | 1 | 09/1980 | 51259062680 | $6.89 | Shop at ECS Tuning | ||||
| 16 | Κανονικό κλειδί (κωδικ.) | 1 | 51251233898 | $15.57 | Shop at ECS Tuning | |||||
| 16 | Κλειδί (μη κωδικ.) | 1 | 09/1980 | 51251233554 | $6.89 | Shop at ECS Tuning | ||||
| 17 | Κλειδί | 1 | 09/1980 | 51251453659 | $12.96 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 18 | Αυτοκόλλητο | 1 | 46631237918 | $12.71 | ΛΗΞΗ | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
