Προφυλακτήρας πίσω ΗΠΑ for BMW 1502-2002tii 2002 (1975)
This Προφυλακτήρας πίσω ΗΠΑ technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Προφυλακτήρας πίσω | 1 | 51121816006 | $404.05 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 02 | Υπόθεμα | 2 | 51125470065 | $25.27 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 03 | Βραχίονας | 2 | 51121817357 | $69.50 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 04 | Ροδέλα | 8,4X24X2-ZNS3 | 12 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Ελατηριωτή ροδέλα | 8,4X15-ZNS3 | 10 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Εξαγωνικό περικόχλιο με ροδέλα | M8 | 12 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Κάλυμμα | 1 | 51121823613 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 07 | Κάλυμμα | 1 | 51121823614 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 08 | Κοχλίας εξαγωνικής κεφαλής | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Ροδέλα | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 10 | Λαστιχένια ροδέλα | 2 | 51125071765 | $1.21 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 11 | Κοχλίας επίπεδης στρογγυλής κεφαλής | M8X20 | 2 | 07119910437 | $0.52 | Shop at ECS Tuning | ||||
| 12 | Βίδα | 4 | 51111804582 | $6.03 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 13 | Μπορντούρα | SCHWARZ | X | 51111808420 | $5.46 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 14 | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 15 | Ροδέλα | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||

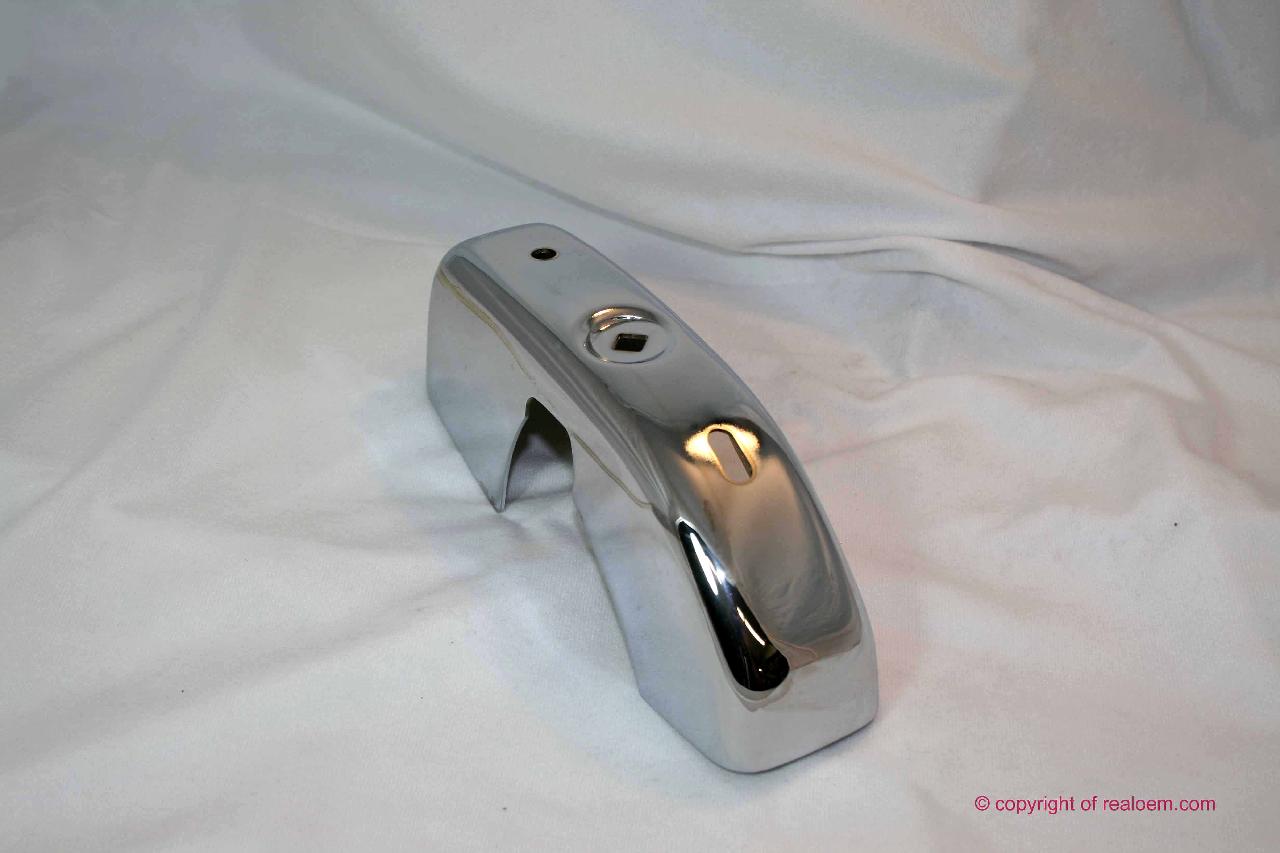

| 16 | Κόρνα προφυλακτήρα | LINKS USA | 1 | 51121816417 | $283.46 | Shop at ECS Tuning | ||||
| 16 | Κόρνα προφυλακτήρα | 1 | 51121816419 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 16 | Κόρνα προφυλακτήρα | RECHTS USA | 1 | 51121816418 | $283.46 | Shop at ECS Tuning | ||||
| 16 | Κόρνα προφυλακτήρα | RECHTS | 1 | 51121816420 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 17 | Κοχλίας επίπεδης στρογγυλής κεφαλής | M8X65 | 2 | 07119910474 | $1.21 | Shop at ECS Tuning | ||||
| 18 | Λαστιχένιο τακάκι | 2 | 51119558125 | $30.34 | Shop at ECS Tuning | |||||
| 19 | Λαστιχένια λωρίδα πίσω | 1 | 51121815604 | $155.79 | Shop at ECS Tuning | |||||
| 20 | Σφιγκτήρας λωρίδων | 15 | 51111826895 | $2.72 | Shop at ECS Tuning | |||||
| 21 | Κοχλίας λωρίδων | 2 | 51111815611 | $2.26 | Shop at ECS Tuning | |||||
| 22 | Προφυλακτήρας πίσω αριστερά | 1 | 51121814703 | $218.62 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 22 | Προφυλακτήρας πίσω δεξιά | 1 | 51121814704 | $218.62 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 23 | Ροδέλα | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Προφυλακτήρας πίσω ΗΠΑ?
- This technical diagram illustrates the Προφυλακτήρας πίσω ΗΠΑ within the Εξοπλισμός οχήματος group for the 1502-2002tii 2002 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Προφυλακτήρας πίσω (Part #51121816006).
- Which models use the hardware listed in this Προφυλακτήρας πίσω ΗΠΑ?
- The hardware and components featured in the Προφυλακτήρας πίσω ΗΠΑ are specific to the 1502-2002tii 2002 produced during 1975. These technical specifications ensure that parts like the Προφυλακτήρας πίσω (51121816006) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Προφυλακτήρας πίσω ΗΠΑ assembly?
- Each item in the Προφυλακτήρας πίσω ΗΠΑ corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Προφυλακτήρας πίσω by locating its position on the schematic, which then links to the official BMW part number 51121816006 for the Εξοπλισμός οχήματος section.
