Υποβραχιόνιο πίσω for BMW 2500-3.3Li 3.0S

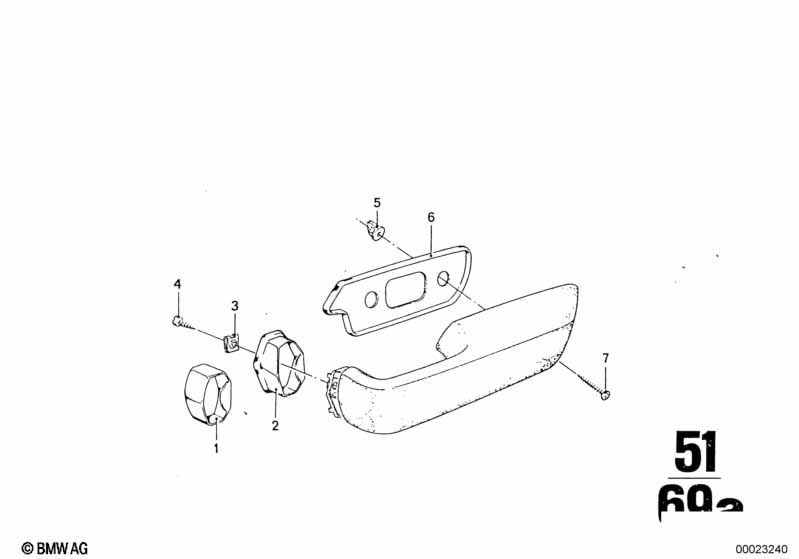

This Υποβραχιόνιο πίσω technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Καπάκι | 1 | 05/1971 | 02/1977 | 51421813565 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 02 | Καπάκι | 1 | 05/1971 | 02/1977 | 51421813566 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 03 | Λαμαρινένιο περικόχλιο | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Λαμαρινόβιδα οβάλ κεφαλής | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Περικόχλιο διαστολής | 4 | 51411801262 | $0.37 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 06 | Διακοσμητικό πλαίσιο αριστερά | 1 | 05/1971 | 02/1977 | 51421813567 | $5.69 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 06 | Διακοσμητικό πλαίσιο δεξιά | 1 | 05/1971 | 02/1977 | 51421813568 | $64.09 | Shop at ECS Tuning | |||
| 07 | Λαμαρινόβιδα | ST4,8X38-R-ZNFE | 4 | 07119905199 | $0.36 | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Υποβραχιόνιο πίσω?
- This technical diagram illustrates the Υποβραχιόνιο πίσω within the Εξοπλισμός οχήματος group for the 2500-3.3Li 3.0S. It provides a detailed exploded view of the components, identifying key parts such as the Καπάκι (Part #51421813565).
- Which models use the hardware listed in this Υποβραχιόνιο πίσω?
- The hardware and components featured in the Υποβραχιόνιο πίσω are specific to the 2500-3.3Li 3.0S. These technical specifications ensure that parts like the Καπάκι (51421813565) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Υποβραχιόνιο πίσω assembly?
- Each item in the Υποβραχιόνιο πίσω corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Καπάκι by locating its position on the schematic, which then links to the official BMW part number 51421813565 for the Εξοπλισμός οχήματος section.
