Μηχανισμός παραθύρου πόρτας πίσω for BMW 5 Series G60 Sedan 520i (2025)

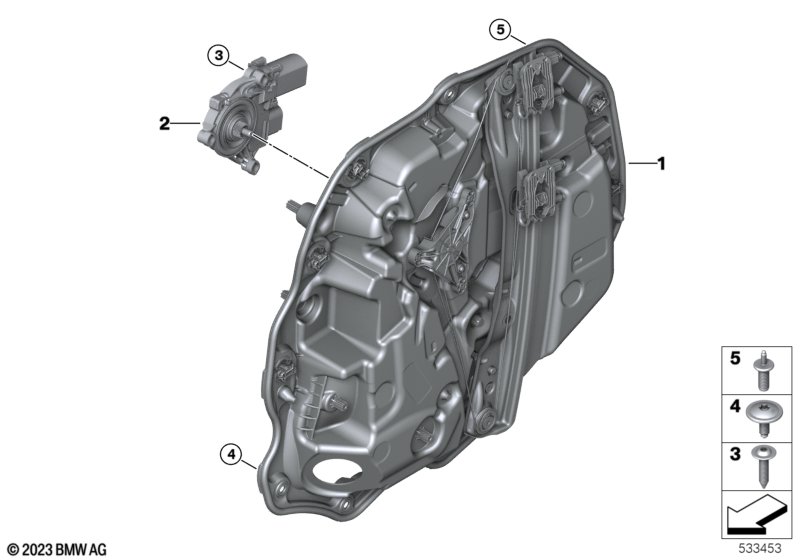

This Μηχανισμός παραθύρου πόρτας πίσω technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Φορέας πόρτας πίσω αριστερά | 1 | 51355A8DA33 | Shop at ECS Tuning | ||||||
| 01 | Φορέας πόρτας πίσω δεξιά | 1 | 51355A8DA34 | Shop at ECS Tuning | ||||||
| 02 | Κινητήριος μηχανισμός ηλεκτρικ.παραθύρου | 1 | 67625A28AC3 | Shop at ECS Tuning | ||||||
| 02 | Κινητήριος μηχανισμός ηλεκτρικ.παραθύρου | 1 | 67625A28AC4 | Shop at ECS Tuning | ||||||
| 03 | Κοχλίας Torx για πλαστικό | ISA L=22MM | 6 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Κοχλίας Torx | ISA M5X12 | 12 | 07148493008 | Shop at ECS Tuning | |||||
| 05 | Βίδα Torx | 2 | 07145A17AC9 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Μηχανισμός παραθύρου πόρτας πίσω?
- This technical diagram illustrates the Μηχανισμός παραθύρου πόρτας πίσω within the Εξοπλισμός οχήματος group for the 5 Series G60 Sedan 520i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Φορέας πόρτας πίσω αριστερά (Part #51355A8DA33).
- Which models use the hardware listed in this Μηχανισμός παραθύρου πόρτας πίσω?
- The hardware and components featured in the Μηχανισμός παραθύρου πόρτας πίσω are specific to the 5 Series G60 Sedan 520i produced during 2025. These technical specifications ensure that parts like the Φορέας πόρτας πίσω αριστερά (51355A8DA33) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Μηχανισμός παραθύρου πόρτας πίσω assembly?
- Each item in the Μηχανισμός παραθύρου πόρτας πίσω corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Φορέας πόρτας πίσω αριστερά by locating its position on the schematic, which then links to the official BMW part number 51355A8DA33 for the Εξοπλισμός οχήματος section.
