Κάθισμ.μπροσ.ράγα καθίσμ.μηχ./επιμ.εξαρ. for BMW 3 Series E46 318Ci (1999)

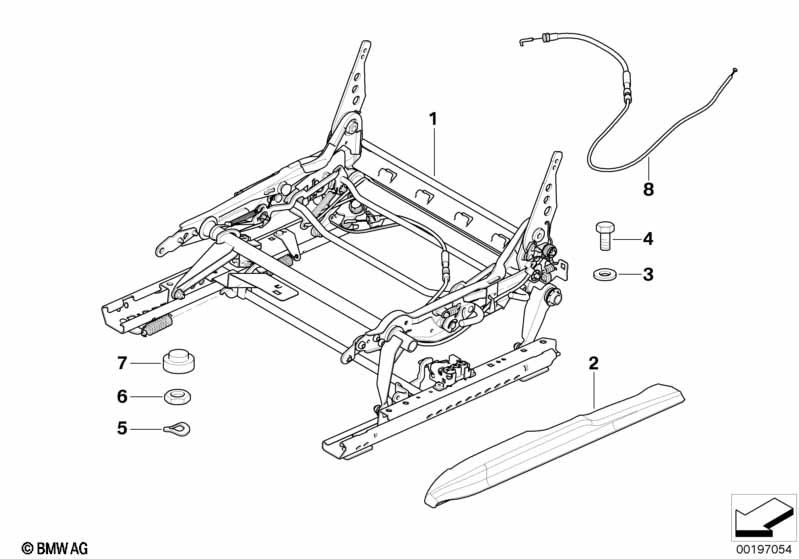

This Κάθισμ.μπροσ.ράγα καθίσμ.μηχ./επιμ.εξαρ. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Ροδέλα | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 04 | Κοχλίας εξαγωνικής κεφαλής | M10 | 4 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Ελατηριωτή ροδέλα | B10-ZNS3 | 4 | 01/2006 | 07119904463 | Shop at ECS Tuning | ||||
| 05 | Ροδέλα | D=10MM | 4 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Εξαγωνικό περικόχλιο με οδόντωση | M10 | 4 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Προστατευτικό κάλυμμα | 4 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 08 | Ντίζα Μπόουντεν Easy Entry αριστερά | 1 | 52107181115 | +χρέωση | Shop at ECS Tuning | |||||
| 08 | Ντίζα Μπόουντεν Easy Entry δεξιά | 1 | 52107181116 | ΛΗΞΗ, +χρέωση | Shop at ECS Tuning |
Σημειώσεις
- +χρέωση = επιπλέον βασική χρέωση (δυνατότητα επιστροφής του παλαιού ανταλλακτικού)
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
