Διάφορα ρελέ for BMW 3 Series E36 M3 (1996)

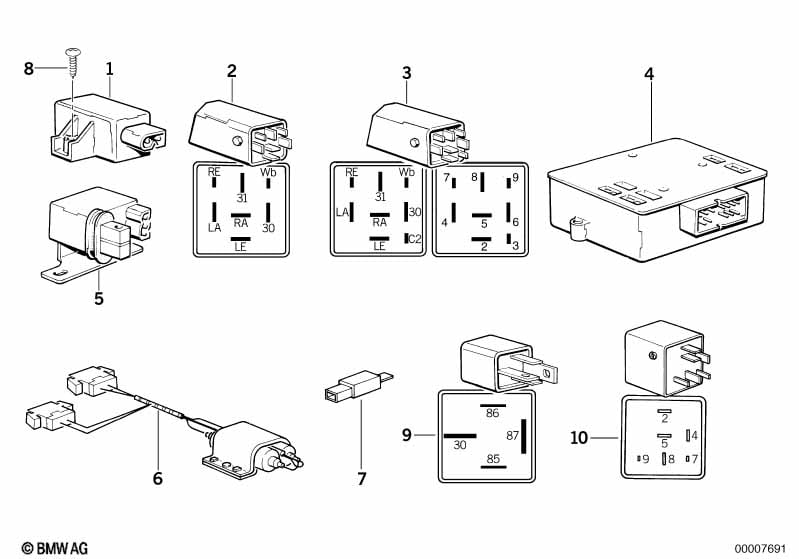

This Διάφορα ρελέ technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Διακόπτης | 1 | 61318350284 | $64.14 | Shop at ECS Tuning | |||||
| 02 | Ρελέ φώτων αλάρμ | 1 | 61361388533 | Shop at ECS Tuning | ||||||
| Για οχήματα με Κοτσαδόρος |
=Ναι |
|||||||||
| 03 | Ρελέ φώτων αλάρμ | 1 | 61361388545 | $69.84 | Shop at ECS Tuning | |||||
| 05 | Ρελέ αποσύνδεσης μπαταρίας | 1 | 61311378211 | $196.42 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 08 | Κοχλίας εξαγωνικής κεφαλής με ροδέλα | L=12MM | 1 | 51268353437 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| Για οχήματα με Συρόμενη-ανοιγόμενη οροφή ηλεκτρική |
=Ναι |
|||||||||
| 10 | Ρελέ συρόμενης-ανοιγόμενης οροφής | 1 | 61358357852 | $47.49 | ΛΗΞΗ | Shop at ECS Tuning | ||||
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
