Performance chassis for BMW 3 Series E90 LCI 318i (2011)

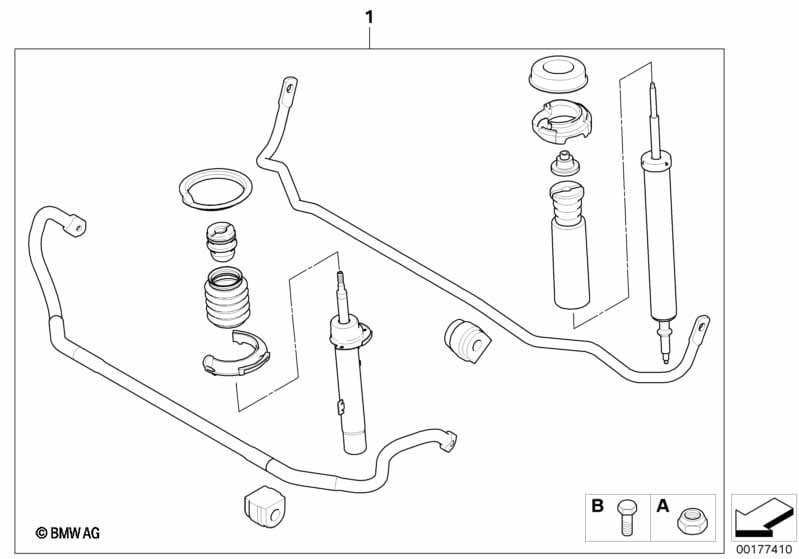

This Performance chassis technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Only with springs, see springs table Select code SZP5A Performance suspension |
||||||||||
| 01 | Retrofit kit sports suspension | BMW PERFORMANCE | 1 | 33502159879 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318i Performance chassis?
- This technical diagram illustrates the Performance chassis within the Retrofitting / conversion / accessories group for the 3 Series E90 LCI 318i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit sports suspension (Part #33502159879).
- Which models use the hardware listed in this Performance chassis?
- The hardware and components featured in the Performance chassis are specific to the 3 Series E90 LCI 318i produced during 2011. These technical specifications ensure that parts like the Retrofit kit sports suspension (33502159879) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Performance chassis assembly?
- Each item in the Performance chassis corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318i, you can identify the Retrofit kit sports suspension by locating its position on the schematic, which then links to the official BMW part number 33502159879 for the Retrofitting / conversion / accessories section.
