BMW Performance aerodynamics, front end for BMW 3 Series E90 LCI 318i (2011)

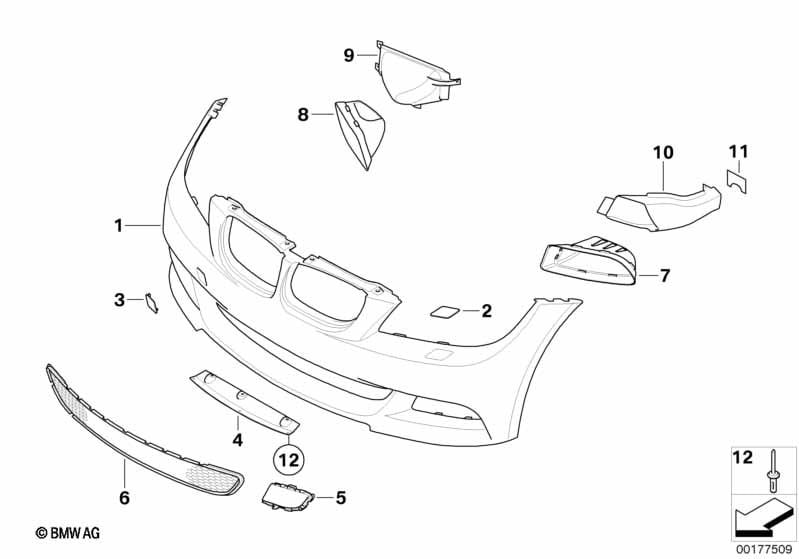

This BMW Performance aerodynamics, front end technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important: The installation instructions are not included in the retrofit kit. The latest installation instructions must be printed from the Electronic Parts Catalogue (EPC) and given to the customer. Components which are not listed in the installation instructions are installed acc.to ISTA/AIR. |
|||||||||
| For vehicles with Active cruise control and Headlight cleaning system and Park Distance Control (PDC) |
S541A=No S502A=Yes S508A=No |
|||||||||
| 01 | Panel, bumper, primed, front | AB 09/08 | 1 | 51112147187 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control and Headlight cleaning system and Park Distance Control (PDC) |
S541A=No S502A=No S508A=No |
|||||||||
| 01 | Panel, bumper, primed, front | 1 | 51112147185 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Active cruise control |
L802A=No S502A=Yes S508A=Yes S541A=No |
|||||||||
| 01 | Panel, bumper, primed, front | AB 09/08 | 1 | 51112147188 | ENDED, +core | Shop at ECS Tuning | ||||
| not suitable for | ||||||||||
| -- | Carrier, bumper front | X | 51117146646 | $263.63 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Active cruise control |
L802A=No S502A=No S508A=Yes S541A=No |
|||||||||
| 01 | Panel, bumper, primed, front | 1 | 51112147186 | ENDED, +core | Shop at ECS Tuning | |||||
| not suitable for | ||||||||||
| -- | Carrier, bumper front | X | 51117146646 | $263.63 | Shop at ECS Tuning | |||||
| 02 | Lid headlight washer system | 1 | 51112147264 | ENDED | Shop at ECS Tuning | |||||
| 02 | Lid headlight washer system | 1 | 51112147265 | $19.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover, towing eye, bumper, front. | 1 | 51112147222 | $15.75 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adapter underbonnet screen | -M- | 1 | 51117892935 | $17.09 | Shop at ECS Tuning | ||||
| 05 | Trim, grille, bumper, middle left | 1 | 51112150361 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Trim, grille, bumper, middle right | 1 | 51112150364 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Grille, bumper, middle front | 1 | 51112147206 | $55.14 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Air duct MOEK right closed | 1 | 51742147268 | ENDED | Shop at ECS Tuning | |||||
| 07 | Air duct MOEK left. closed | 1 | 51742147269 | ENDED | Shop at ECS Tuning | |||||
| 12 | Blind rivet | 6X25MM | 3 | 51118047458 | $0.82 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
