Retrofit, M rear spoiler for BMW 5 Series E60 530i (2007)

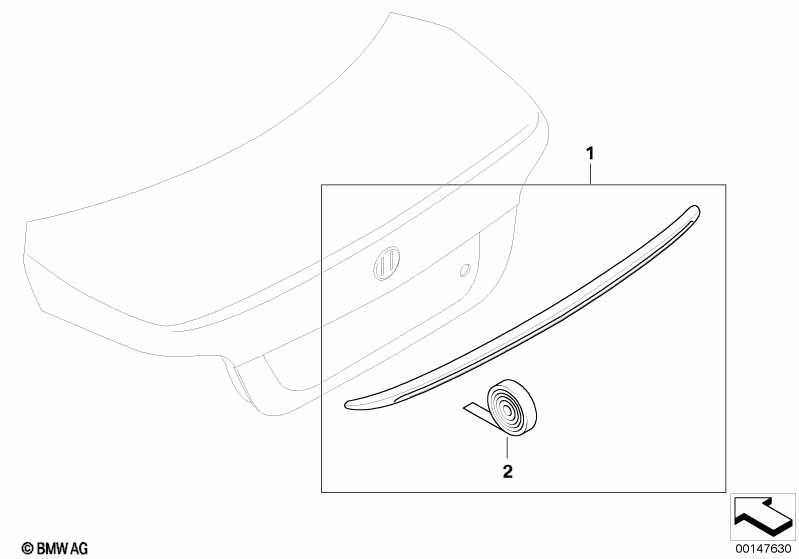

This Retrofit, M rear spoiler technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 0.5 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Primed rear spoiler | M | 1 | 51628040054 | $192.95 | +core | Shop at ECS Tuning | |||
| When ordering indicate colour code | ||||||||||
| 01 | Painted rear spoiler | CODE - UNI/MET. | 1 | 51620395199 | $280.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Adhesive tape | M | 1 | 51628040053 | $13.50 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
