Retrofit in real mussle maple wood for BMW 5 Series E39 528i (1996)

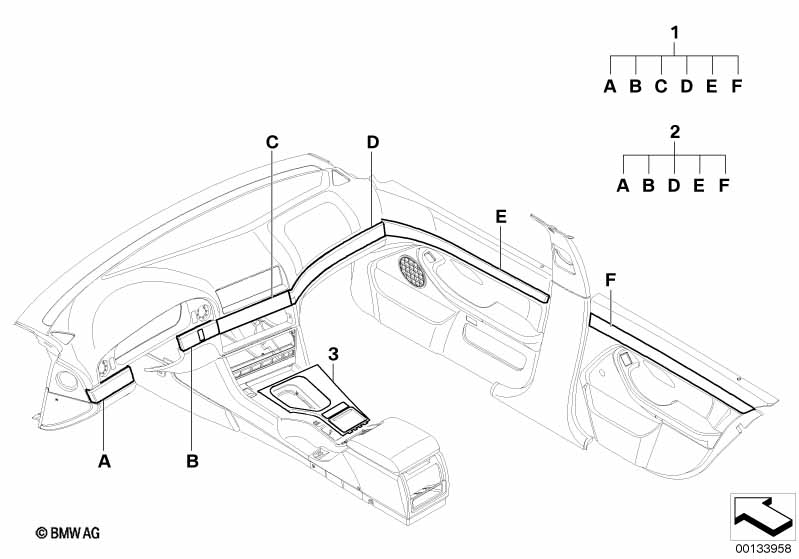

This Retrofit in real mussle maple wood technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Shift knob/selector lever handle see main group 25 For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 1.5 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Set of wooden covers | MUSCHELAHORN | 1 | 51417047873 | ENDED | Shop at ECS Tuning | ||||
| Tyre pressure monitoring system (TPMS) | ||||||||||
| 01 | Set of wooden covers | MUSCHELAHORN | 1 | 51417047874 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor 16:9 |
=Yes |
|||||||||
| 02 | Set of wooden covers | MUSCHELAHORN | 1 | 51417047875 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TPMS tyre pressure monitoring system and On-board monitor 16:9 |
=Yes =Yes |
|||||||||
| 02 | Set of wooden covers | MUSCHELAHORN | 1 | 51417047876 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Base of centre console | MUSCHELAHORN | 1 | 51167047858 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
