Air conditioning system R134A for BMW 5 Series E39 528i (1996)

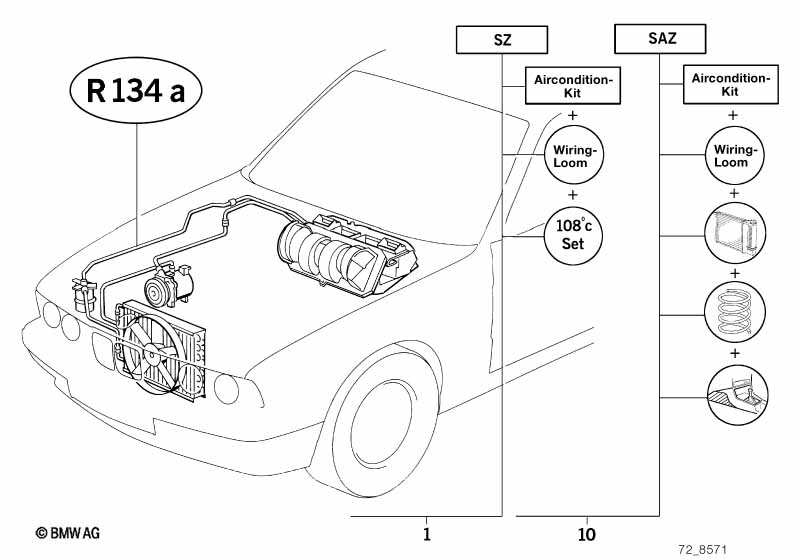

This Air conditioning system R134A technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | not in connection with SA 538 (latent heat accumulator) Important: The installation instructions are not included in the retrofit kit. Print out the latest installation instructions from the Aftersales Assistance Portal (ASAP) and issue to the customer. |
|||||||||
| 01 | Installing set automatic air conditioner | 6-ZYL. BENZINER | 1 | 09/1997 | 64509405314 | $4408.20 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Installing set 108 C | 1 | 09/1997 | 64519401999 | ENDED | Shop at ECS Tuning | ||||
| 10 | Installing set automatic air conditioner | 6-ZYL. BENZINER | 1 | 09/1997 | 64509405314 | $4408.20 | ENDED | Shop at ECS Tuning | ||
| ONLY IN CONJUNCTION WITH COIL SPRING FAN SHROUD RADIATOR |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
