Retrofit kit bi-xenon headlight for BMW 5 Series E60 530i (2007)

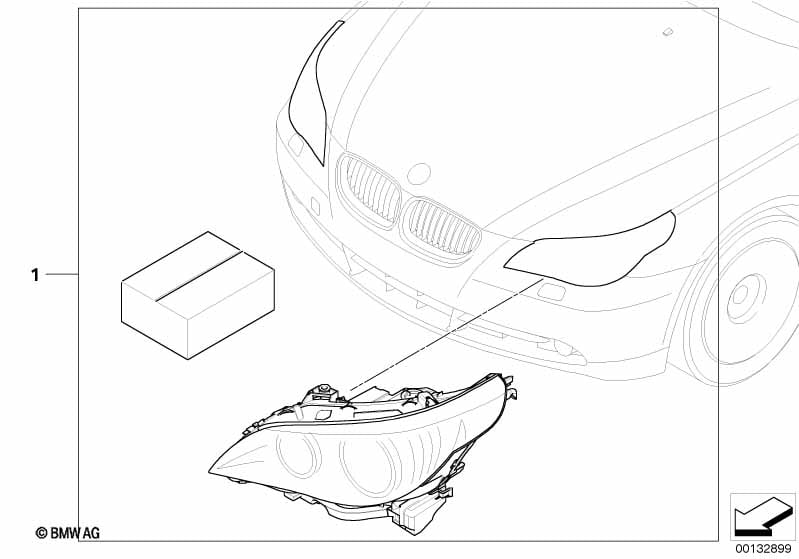

This Retrofit kit bi-xenon headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.

Retrofit kit bi-xenon headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Head-up display
only in conjunction with
Bi-xenon headlight, left
Bi-xenon headlight, right
HEAD LAMP CLEANING DEVICE

S610A=Yes
01 Install.kit, Xenon light E60/61 1 03/2005 03/2007 63120412094 $1255.50 ENDED, +core Shop at ECS Tuning
For vehicles with
Head-up display
only in conjunction with
Control element light
Bi-xenon headlight, left
Bi-xenon headlight, right
HEAD LAMP CLEANING DEVICE

S610A=No
01 Install.kit, Xenon light E60 1 03/2005 03/2007 63120412063 $1328.00 ENDED, +core Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
