Retrofit kit cornering light for BMW 3 Series E46 318i (2001)

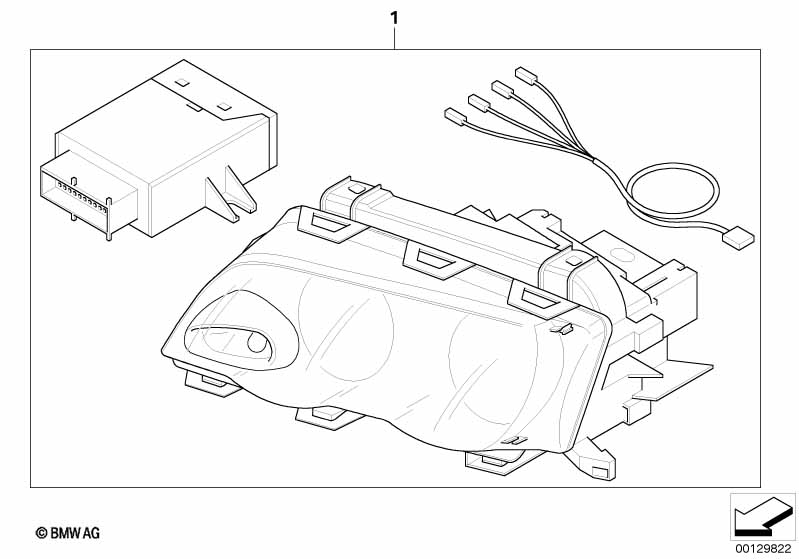

This Retrofit kit cornering light technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Xenon Light only in conjunction with automatic headlight adjustment control HEAD LAMP CLEANING DEVICE |
S522A=Yes |
|||||||||
| 01 | Cornering light | E46/3/4 LHD | 1 | 09/2001 | 63130308101 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Xenon Light |
S522A=No |
|||||||||
| 01 | Cornering light | E46/3/4 LHD | 1 | 09/2001 | 63130304666 | $542.00 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Retrofit kit cornering light?
- This technical diagram illustrates the Retrofit kit cornering light within the Retrofitting / conversion / accessories group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Cornering light (Part #63130308101).
- Which models use the hardware listed in this Retrofit kit cornering light?
- The hardware and components featured in the Retrofit kit cornering light are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the Cornering light (63130308101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit cornering light assembly?
- Each item in the Retrofit kit cornering light corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Cornering light by locating its position on the schematic, which then links to the official BMW part number 63130308101 for the Retrofitting / conversion / accessories section.
