Hardtop for BMW 3 Series E36 M3 (1994)

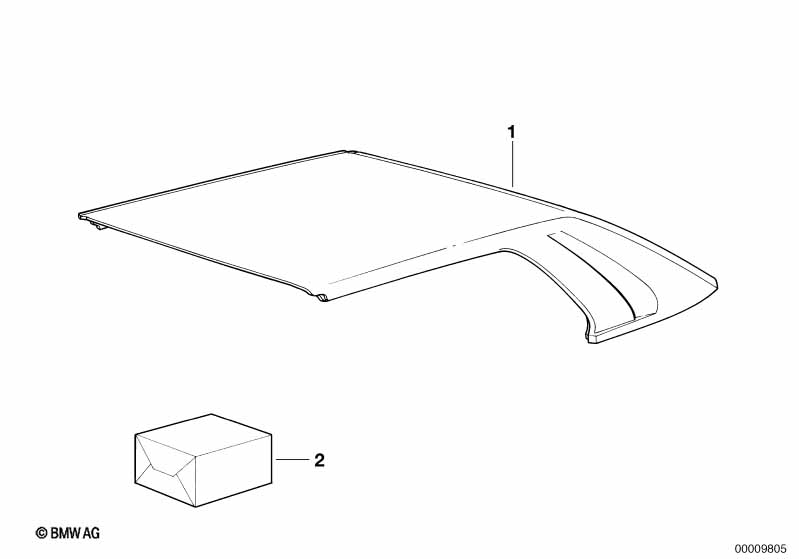

This Hardtop technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, hardtop | SONDERFARBEN | 1 | 54219066524 | $3850.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | ALPINWEISS 300 | 1 | 54219402537 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | BROKATROT 259 | 1 | 54219402538 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | CALYPSOROT 252 | 1 | 54219402539 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | DIAMANT 181 | 1 | 54219402540 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | DUNKELBLAU 263 | 1 | 54219402541 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | DUNKELGR. 307 | 1 | 54219402542 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | MAURIT.BLAU 287 | 1 | 54219402543 | $3634.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | HELLROT 314 | 1 | 54219402544 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | SCHWARZ II 668 | 1 | 54219402545 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | ARKTISSILB. 309 | 1 | 54219402549 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | ARKTISGRAU 269 | 1 | 54219402557 | ENDED | Shop at ECS Tuning | ||||
| 01 | Hardtop | MADEIRAVIOL.302 | 1 | 54219402561 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | SIENAROT 281 | 1 | 54219402562 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | VIOLETTROT 316 | 1 | 54219402563 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | SAMOABLAU 295 | 1 | 54219402564 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | BOSTONGR. 275 | 1 | 54219402565 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | MOREAGR. 288 | 1 | 54219402566 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | SAMANABEIGE 282 | 1 | 54219402583 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | SUMATRAGELB 296 | 1 | 54219402586 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | ALPINW.II 218 | 1 | 54219402588 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | DUNKELGR. 289 | 1 | 54219402589 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | BRILLANTROT 308 | 1 | 54219402590 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | COSMOSSCHW. 303 | 1 | 54219402901 | $3691.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | AVUS-BLAU 276 | 1 | 54219402940 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | DAYT.VIOL. 283 | 1 | 54219402941 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | MUGELLOROT 274 | 1 | 54219404354 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | DAKARGELB 267 | 1 | 54219404355 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | CORDOBAROT 286 | 1 | 54219404430 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | MONTREALBL. 297 | 1 | 54219404431 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | DAKARGB.II 337 | 1 | 54219405664 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | BYZANZ 355 | 1 | 54219405665 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, hardtop | ESTORILBLAU 335 | 1 | 54219405666 | $2561.22 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Retrofit kit, hardtop | TECHNOVIOL. 299 | 1 | 54219405667 | $2561.22 | ENDED | Shop at ECS Tuning | |||
| Important: The installation instructions are not included in the retrofit kit. Print out the latest installation instructions from the Aftersales Assistance Portal (ASAP) and issue to the customer. |
||||||||||
| 02 | Retrofit kit, hardtop preparation | 1 | 54218163061 | $106.95 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
