Ski-box for BMW 5 Series E39 528i (1999)

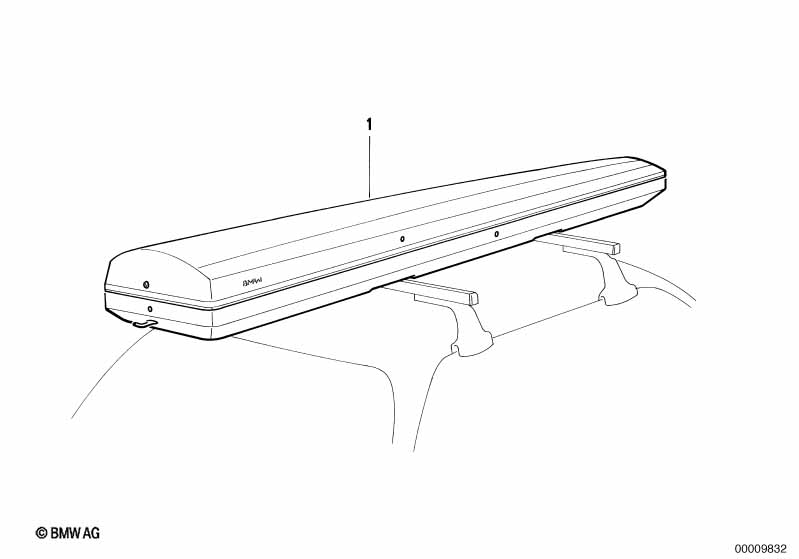

This Ski-box technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ski-box | 1 | 82129401061 | $1149.48 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Ski-box | 1 | 82129401068 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | Plaque | BMW | 2 | 82129401077 | $12.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Ski-box | 1 | 82129401088 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | Key | 1 | 82129401099 | ENDED | Shop at ECS Tuning | |||||
| 01 | Catch incl. key | 1 | 82129401122 | $34.25 | ENDED | Shop at ECS Tuning | ||||
| 01 | Gas pressurized spring | 2 | 82129401123 | ENDED | Shop at ECS Tuning | |||||
| 01 | Tension belt roof box | 1 | 82129401124 | $21.00 | ENDED | Shop at ECS Tuning | ||||
| 01 | Locking for roofbox | 2 | 82129401125 | ENDED | Shop at ECS Tuning | |||||
| 01 | Adapter | 1 | 82129401180 | $47.25 | ENDED | Shop at ECS Tuning | ||||
| 01 | Ski holder | 2 | 82799404149 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
