Cooling system-thermostat housing for BMW 3 Series E30 325e (1987)

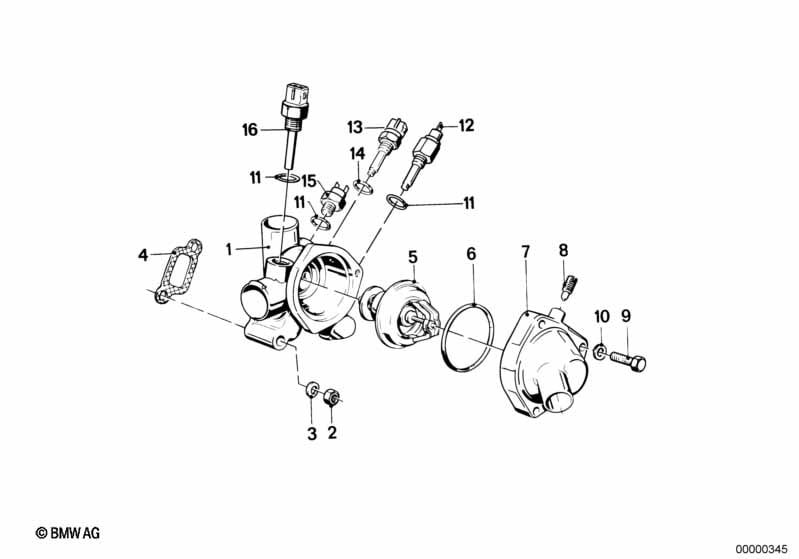

This Cooling system-thermostat housing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut with flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11531722692 | $3.62 | Shop at ECS Tuning | |||||
| 05 | Thermostat | 80CEL | 1 | 09/1985 | 11531710953 | Shop at ECS Tuning | ||||
| 06 | O-ring | 60X3,5 | 1 | 11531265084 | $2.10 | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 11531265059 | $20.68 | Shop at ECS Tuning | |||||
| 08 | Vent screw | M8 | 1 | 11531275881 | $3.47 | Shop at ECS Tuning | ||||
| 09 | Hex Bolt | M6X25 | 3 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Spring washer Black | B6-ZN | 3 | 08/1990 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 10 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B6-ZNS3 | 3 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 11 | Gasket ring | A14X18-AL | 3 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Remote thermometre sending unit | 1 | 09/1985 | 12621710511 | Shop at ECS Tuning | |||||
| 13 | Temperature sensor | M12X1,5 | 1 | 12/1986 | 13621709966 | $37.35 | ENDED | Shop at ECS Tuning | ||
| 14 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Temperature switch | 1 | 12631279716 | ENDED | Shop at ECS Tuning | |||||
| 16 | Temperature-time switch | 1 | 13621362599 | $72.54 | Shop at ECS Tuning |
