Emission control for BMW 7 Series E23 733i

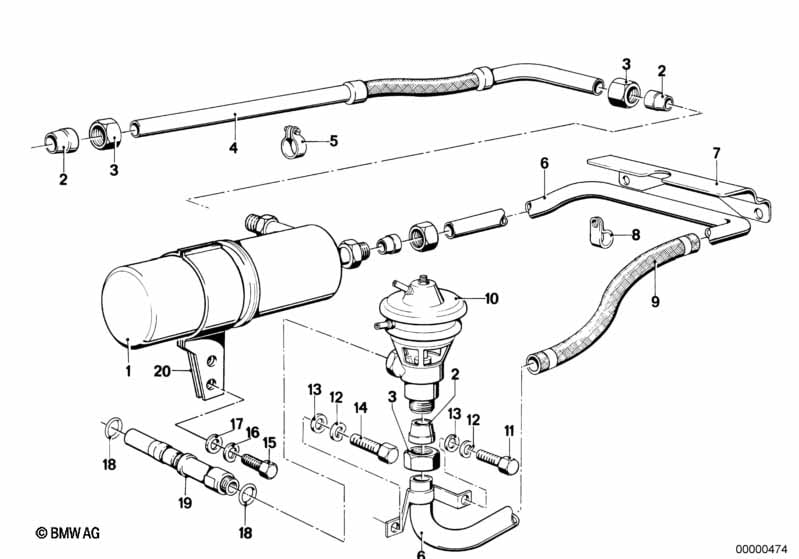

This Emission control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust gas filter | 1 | 09/1979 | 11711265818 | $243.73 | Shop at ECS Tuning | ||||
| 02 | Slip ring | 5 | 09/1979 | 11711257699 | $3.85 | Shop at ECS Tuning | ||||
| 03 | Cap nut | 5 | 09/1979 | 11711257669 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Pipe | 1 | 09/1979 | 11711265821 | $74.87 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose clamp | L15-19 | 1 | 09/1979 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 06 | Pipe | 1 | 09/1979 | 11711265822 | $31.84 | ENDED | Shop at ECS Tuning | |||
| 07 | Protective cover | 1 | 09/1979 | 11711260124 | $2.85 | ENDED | Shop at ECS Tuning | |||
| 08 | Pipe clamp | 1 | 09/1979 | 11531257511 | ENDED | Shop at ECS Tuning | ||||
| 09 | Insulating hose | 1 | 09/1979 | 11711260112 | ENDED | Shop at ECS Tuning | ||||
| 09 | Insulating hose | 1 | 09/1979 | 11711247231 | $21.20 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose clamp | L15-19 | 2 | 09/1979 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 10 | EGR-valve | 1 | 09/1979 | 11711264067 | $175.14 | Shop at ECS Tuning | ||||
| 11 | Hex Bolt | M6X12-8.8-ZNNIV | 1 | 09/1979 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 12 | Spring washer Black | B6-ZN | 2 | 09/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 13 | Washer | A6,4-200HV-ZNS3 | 2 | 09/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 14 | Hex Bolt | M6X18 | 1 | 09/1979 | 23317545769 | $0.67 | Shop at ECS Tuning | |||
| 15 | Hex Bolt | M8X25 | 2 | 09/1979 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 16 | Wave washer | 8,4X15-ZNS3 | 2 | 09/1979 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 17 | Washer | 8,4X16X1,6-ZNNV | 2 | 09/1979 | 07119907030 | Shop at ECS Tuning | ||||
| 18 | O-ring | 15X1,5 | 2 | 09/1979 | 11711260135 | $1.65 | ENDED | Shop at ECS Tuning | ||
| 19 | Air feed-in pipe | 1 | 09/1979 | 11711263571 | ENDED | Shop at ECS Tuning | ||||
| 20 | Muffler clamp | 1 | 09/1979 | 11711266915 | $12.61 | ENDED | Shop at ECS Tuning | |||
