Vacuum control - vacuum tube for BMW 3 Series E36 318i (1992)

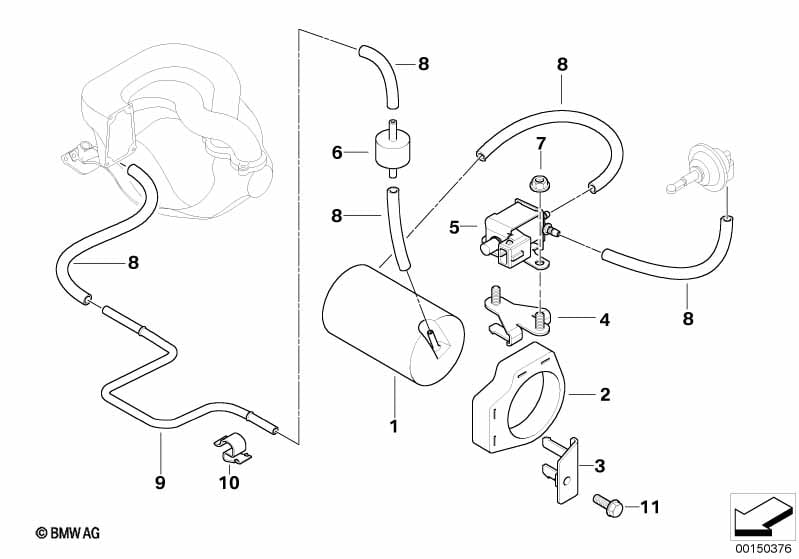

This Vacuum control - vacuum tube technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum tank | 1 | 09/1995 | 11611734578 | $29.33 | Shop at ECS Tuning | ||||
| 02 | Rubber mount | 1 | 09/1995 | 13411734575 | $3.32 | Shop at ECS Tuning | ||||
| 03 | Bracket, vacuum reservoir | 1 | 09/1995 | 11611739589 | $9.63 | Shop at ECS Tuning | ||||
| 04 | Bracket for electric changeover valve | 1 | 09/1995 | 11611247109 | $16.95 | Shop at ECS Tuning | ||||
| 05 | Electric valve | AGR | 1 | 09/1995 | 17302243804 | $47.95 | Shop at ECS Tuning | |||
| 06 | Non-return valve | 1 | 09/1995 | 11611312737 | $17.70 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-ZNS3 | 2 | 09/1995 | 07119904023 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 08 | Vacuum hose black | 3,5X1,8 | X | 09/1995 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 09 | Vacuum pipe | 1 | 09/1995 | 11611247341 | $7.77 | Shop at ECS Tuning | ||||
| 10 | Cable clamp | D=3,2MM | 2 | 09/1995 | 12521714023 | $0.25 | Shop at ECS Tuning | |||
| 11 | Hex Bolt with washer | M6X16-U1-8.8 | 1 | 09/1995 | 07119904524 | $0.25 | Shop at ECS Tuning |
