Crankshaft Connecting Rod for BMW 3 Series E46 M3

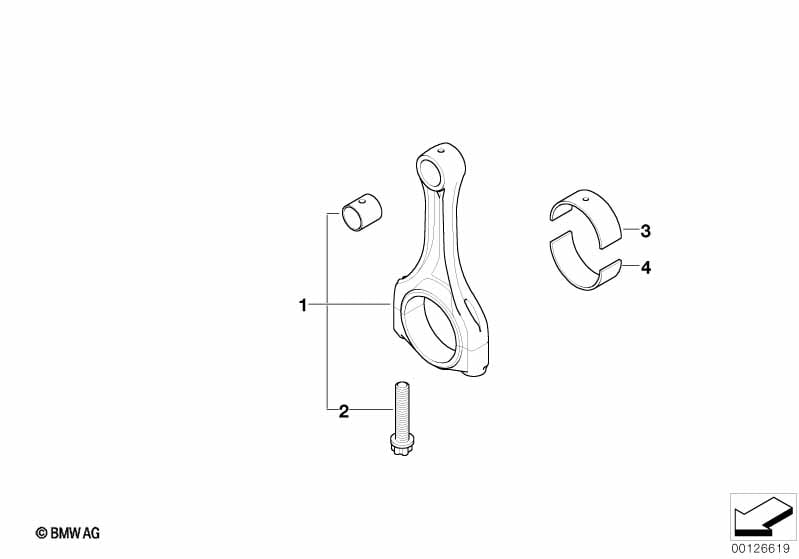

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pos. 2- Connecting rod bolt M11 x 1,25 up to 02.03 See repair manual |
|||||||||
| 01 | Set connecting rod | 1 | 11247834437 | $3034.65 | Shop at ECS Tuning | |||||
| See repair manual | ||||||||||
| 02 | Connecting rod bolt | M10X1,25 | 12 | 02/2003 | 11247834310 | $6.32 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Set connecting rod | X | 02/2003 | 11247834437 | $3034.65 | Shop at ECS Tuning | ||||
| 03 | Bearing shell, blue | 49,00MM(0) | 6 | 11247835440 | $16.49 | Shop at ECS Tuning | ||||
| 03 | Bearing shell, blue | 48,75MM(+0,25) | 6 | 11247835452 | $16.71 | Shop at ECS Tuning | ||||
| 04 | Bearing shell, red | 49,00MM(0) | 6 | 11247835439 | $16.49 | Shop at ECS Tuning | ||||
| 04 | Bearing shell, red | 48,75MM(+0,25) | 6 | 11247835451 | $16.71 | Shop at ECS Tuning | ||||
