Engine block mounting parts for BMW 3 Series E36 318i (1994)

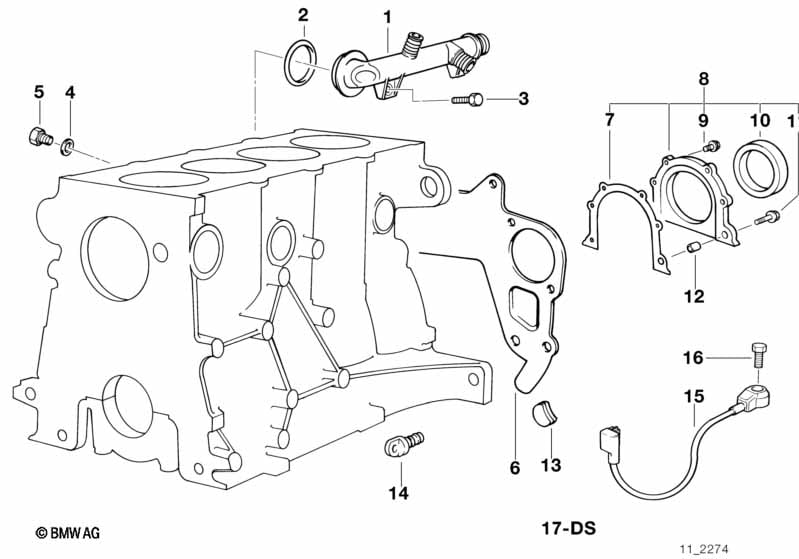

This Engine block mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | 1 | 11531714738 | $17.93 | Shop at ECS Tuning | |||||
| 02 | O-ring | 32X5 | 1 | 11531709157 | $2.04 | Shop at ECS Tuning | ||||
| 03 | Hex Bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 06 | Covering plate | 1 | 11141734019 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket Steel | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 08 | Set of covers | 1 | 09/1994 | 11141438715 | $69.66 | ENDED | Shop at ECS Tuning | |||
| 08 | Set of covers | 1 | 09/1994 | 11142247867 | $94.60 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex Bolt with washer | M6X25-ZNNIV SI | 4 | 04/1993 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 10 | Shaft seal | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 11 | Hex Bolt with washer | M8X25-Z1 | 2 | 04/1993 | 09/1994 | 11141743313 | $0.45 | Shop at ECS Tuning | ||
| 12 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Blind plug | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 15 | Ping Sensor | 2 | 12141734580 | $107.22 | Shop at ECS Tuning | |||||
| 16 | Hex Bolt | M8X25 | 2 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Gasket Set Engine Block Asbesto Free | 1 | 01/1994 | 11119066436 | $172.04 | +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
