Timing and valve train-timing chain for BMW 3 Series E36 318is (1995)

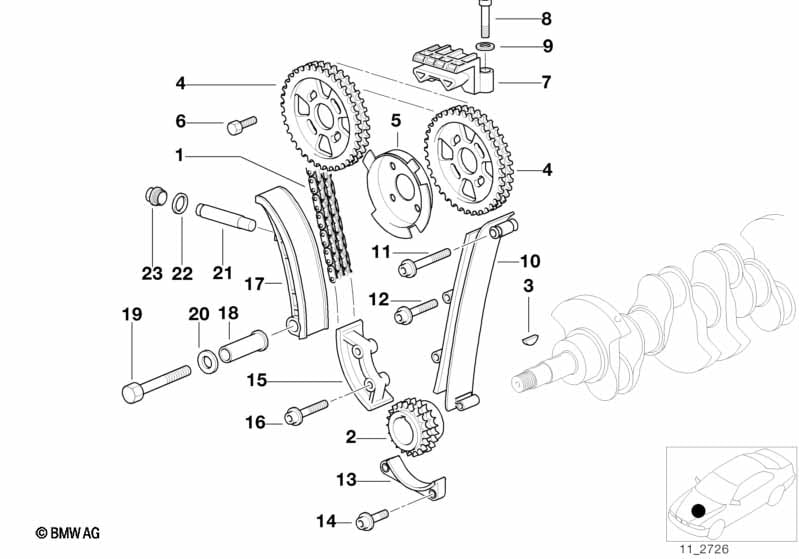

This Timing and valve train-timing chain technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 1 | 11311739480 | Shop at ECS Tuning | ||||||
| 02 | Sprocket | 1 | 11211247338 | $62.77 | Shop at ECS Tuning | |||||
| 03 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Sprocket | 2 | 11361247951 | $24.37 | ENDED | Shop at ECS Tuning | ||||
| 05 | Impulse sending wheel | 1 | 11311247950 | $11.07 | Shop at ECS Tuning | |||||
| 06 | Hex Bolt with washer | M7X20-U1 | 8 | 07119906642 | Shop at ECS Tuning | |||||
| 07 | Slide rail | 1 | 11311743046 | $16.11 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M6X45-8.8-ZNS | 2 | 07119920123 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Guide rail | 1 | 11311247483 | Shop at ECS Tuning | ||||||
| 11 | Fillister head screw | M6X45-8.8-ZNS | 1 | 07119920123 | $0.60 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | M6X35-Z1 | 3 | 07119919824 | Shop at ECS Tuning | |||||
| 13 | Guide | 1 | 11311734694 | $16.28 | Shop at ECS Tuning | |||||
| 14 | Internal Torx screw with washer | M6X25-U1-8.8 | 2 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Deflection rail | 1 | 11311739130 | $14.53 | Shop at ECS Tuning | |||||
| 16 | Fillister head screw | M6X35-Z1 | 2 | 07119919824 | Shop at ECS Tuning | |||||
| 17 | Chain tensioner | 1 | 11311743262 | $74.43 | Shop at ECS Tuning | |||||
| 18 | Bush | 1 | 11311247452 | $5.98 | Shop at ECS Tuning | |||||
| 19 | Hex Bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 20 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 21 | Chain tensioner | 1 | 11311743187 | $61.43 | Shop at ECS Tuning | |||||
| 22 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 23 | Screw plug | 1 | 11311721579 | $3.15 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
