Timing - Timing Chain Lower P for BMW 5 Series E39 525i (2003)

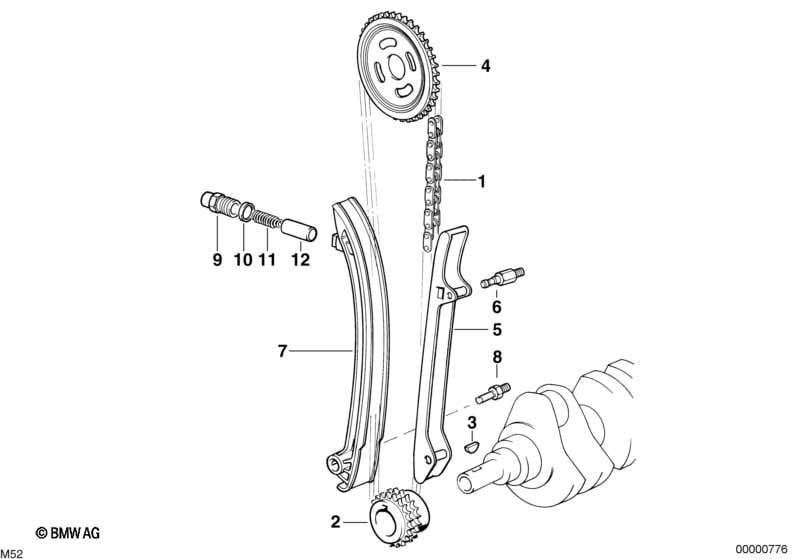

This Timing - Timing Chain Lower P technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 1 | 11311432176 | $65.27 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sprocket | 1 | 11211719984 | $71.52 | Shop at ECS Tuning | |||||
| 03 | Woodruff key | 5X6.5 | 2 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Sprocket | 1 | 11361438375 | +core | Shop at ECS Tuning | |||||
| 05 | Guide rail | 1 | 11311726480 | $15.77 | Shop at ECS Tuning | |||||
| 06 | Bearing bolt | 2 | 11311748817 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 07 | Chain tensioner | 1 | 11311703717 | $53.05 | Shop at ECS Tuning | |||||
| 08 | Bearing bolt | 1 | 11311703718 | $5.27 | Shop at ECS Tuning | |||||
| 09 | Cylinder | 1 | 11311703746 | $16.28 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | A26X31-AL | 1 | 07119963418 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Coil spring | 1 | 11411706809 | $3.43 | Shop at ECS Tuning | |||||
| 12 | Piston | 1 | 11311703747 | $28.03 | Shop at ECS Tuning |
