Cable, starter for BMW 3 Series E90 320i (2007)

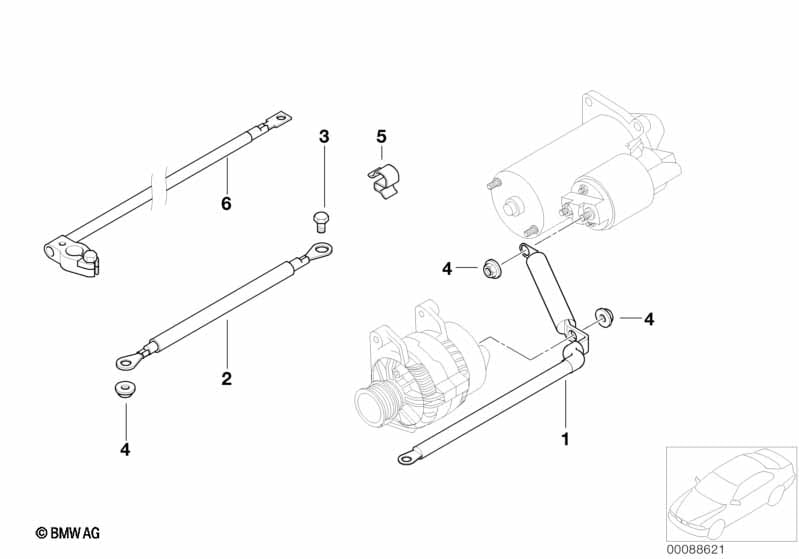

This Cable, starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, altern, start motor supp point B+ | 1 | 12427570254 | Shop at ECS Tuning | ||||||
| 02 | Earth cable | 1 | 12427549393 | $15.05 | Shop at ECS Tuning | |||||
| 02 | Earth cable | 400MM | 1 | 12427795485 | Shop at ECS Tuning | |||||
| 04 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Flange nut | M8 | 3 | 07143413174 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320i Cable, starter?
- This technical diagram illustrates the Cable, starter within the Engine electrical system group for the 3 Series E90 320i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Cable, altern, start motor supp point B+ (Part #12427570254).
- Which models use the hardware listed in this Cable, starter?
- The hardware and components featured in the Cable, starter are specific to the 3 Series E90 320i produced during 2007. These technical specifications ensure that parts like the Cable, altern, start motor supp point B+ (12427570254) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable, starter assembly?
- Each item in the Cable, starter corresponds to the numbered list below the illustration. For the 3 Series E90 320i, you can identify the Cable, altern, start motor supp point B+ by locating its position on the schematic, which then links to the official BMW part number 12427570254 for the Engine electrical system section.
