Cable harness fixings for BMW 5 Series F11 530i (2010)

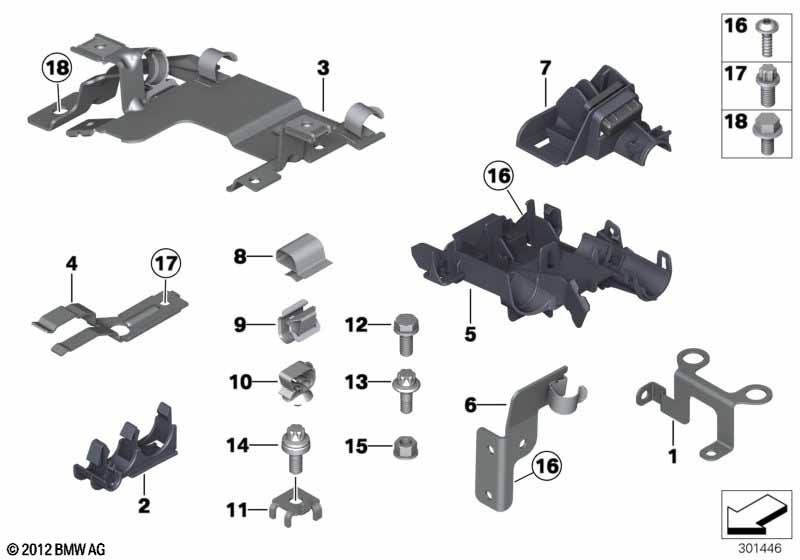

This Cable harness fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket, cable harness | 1 | 12517614600 | Shop at ECS Tuning | ||||||
| 02 | Bracket, coolant hose | 1 | 12527591948 | Shop at ECS Tuning | ||||||
| 03 | Holder | 1 | 12527584621 | Shop at ECS Tuning | ||||||
| 04 | Bracket | 1 | 12527532993 | $1.80 | Shop at ECS Tuning | |||||
| 05 | Bracket, cable harness | 1 | 12527584619 | Shop at ECS Tuning | ||||||
| 06 | Bracket, B+ lead | 1 | 12527584556 | Shop at ECS Tuning | ||||||
| 07 | Holder | 1 | 12527586730 | Shop at ECS Tuning | ||||||
| 08 | Cable clamp | 3 | 12521436023 | $0.68 | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 10 | Cable clip | 1 | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Spacer plate | 1 | 12527599642 | Shop at ECS Tuning | ||||||
| Mounting, ground, DME | ||||||||||
| 12 | Hex Bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| Mounting to VANOS shaft | ||||||||||
| 13 | Torx screw | M6X16-AL | 2 | 13627530413 | $0.93 | Shop at ECS Tuning | ||||
| Mounting, ground to EWP | ||||||||||
| 14 | Aluminium screw, outer Torx, with washer | M8X20MM | 1 | 12527557037 | $2.38 | Shop at ECS Tuning | ||||
| Mounting, ground, ignitioin coil | ||||||||||
| 15 | Hex nut | AM5-8-ZNNIV SI | 2 | 07129904319 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Torx screw | 50X16 | 5 | 13717555679 | $0.63 | Shop at ECS Tuning | ||||
| 17 | ASA-Bolt | M6X12 | 1 | 07129905030 | $1.53 | Shop at ECS Tuning | ||||
| 18 | Hexagon screw with flange | M6X12-8.8-ZNS3 | 2 | 07119904125 | $0.25 | Shop at ECS Tuning | ||||
