Starter for BMW 3 Series G20 Saloon LCI M340i (2023)

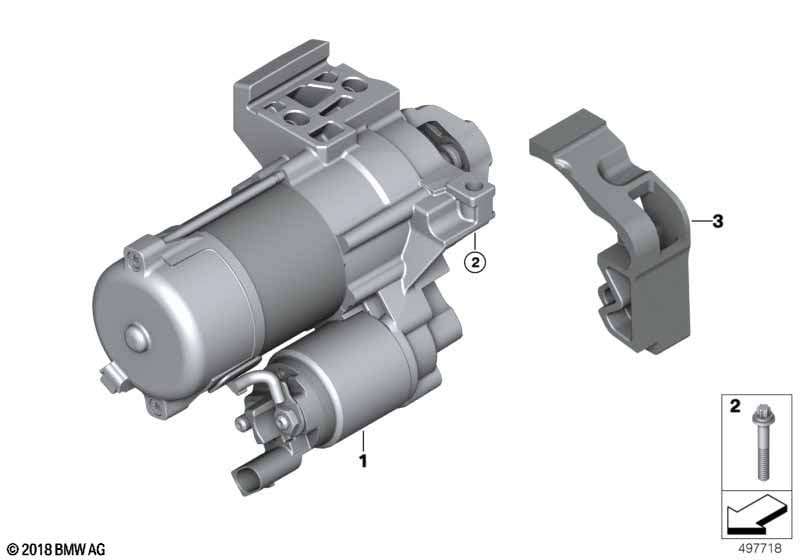

This Starter technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Saloon LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Starter motor | 1 | 12419454628 | Shop at ECS Tuning | ||||||
| 02 | Hexalobular socket screw | BM8X60 | 3 | 07129907896 | Shop at ECS Tuning | |||||
| 03 | Acoustic plug | BOSCH | 1 | 12418571349 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Saloon LCI M340i Starter?
- This technical diagram illustrates the Starter within the Engine electrical system group for the 3 Series G20 Saloon LCI M340i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Starter motor (Part #12419454628).
- Which models use the hardware listed in this Starter?
- The hardware and components featured in the Starter are specific to the 3 Series G20 Saloon LCI M340i produced during 2023. These technical specifications ensure that parts like the Starter motor (12419454628) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Starter assembly?
- Each item in the Starter corresponds to the numbered list below the illustration. For the 3 Series G20 Saloon LCI M340i, you can identify the Starter motor by locating its position on the schematic, which then links to the official BMW part number 12419454628 for the Engine electrical system section.
