Fuel injection k-jetronic for BMW 5 Series E28 520i (1981)

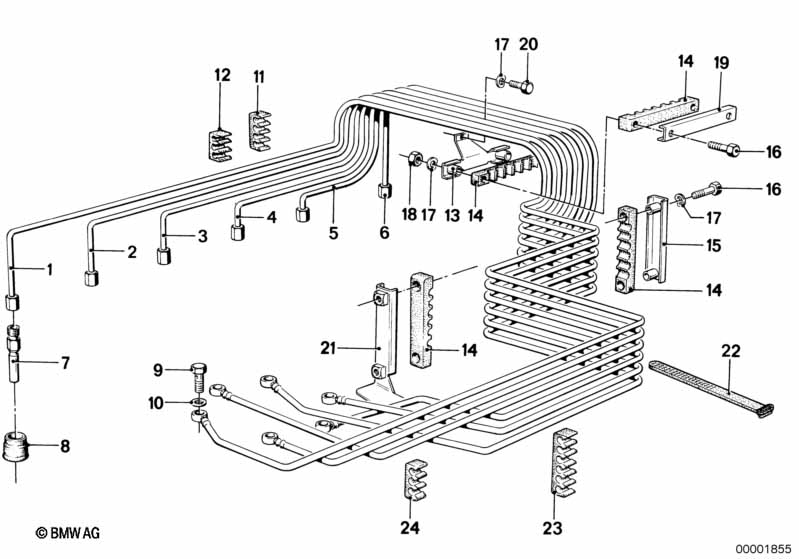

This Fuel injection k-jetronic technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection pipe 1st cylinder | 1 | 09/1982 | 13531276580 | $52.73 | Shop at ECS Tuning | ||||
| 02 | Injection pipe 2nd cylinder | 1 | 09/1982 | 13531276581 | ENDED | Shop at ECS Tuning | ||||
| 03 | Injection pipe 3rd cylinder | 1 | 09/1982 | 13531276582 | ENDED | Shop at ECS Tuning | ||||
| 04 | Injection pipe 4th cylinder | 1 | 09/1982 | 13531276583 | $25.95 | ENDED | Shop at ECS Tuning | |||
| 05 | Injection pipe 5th cylinder | 1 | 09/1982 | 13531276584 | $24.83 | Shop at ECS Tuning | ||||
| 06 | Injection pipe 6th cylinder | 1 | 09/1982 | 13531276585 | $24.83 | Shop at ECS Tuning | ||||
| 07 | Injection valve | 6 | 09/1982 | 13531266436 | $64.88 | Shop at ECS Tuning | ||||
| 08 | Bush | 6 | 09/1982 | 13531269477 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Hollow bolt | 6 | 09/1982 | 13531264360 | $2.90 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A08X11,5-CU | X | 09/1982 | 07119963042 | $0.09 | Shop at ECS Tuning | |||
| 11 | Holder | 3 | 09/1982 | 13531254038 | $1.57 | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 09/1982 | 13531254041 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 13 | Holder | 1 | 09/1982 | 13531267027 | $3.05 | ENDED | Shop at ECS Tuning | |||
| 14 | Terminal strip | 2 | 09/1982 | 13531265439 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket | 1 | 09/1982 | 13531262747 | $4.52 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex Bolt | M6X25 | 4 | 09/1982 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 17 | Spring washer Black | B6-ZN | 6 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 17 | Washer | 5.3-140 HV-ZNS | 6 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 17 | Wave washer | B6-ZNS3 | 6 | 09/1982 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 18 | Hex nut | M6-8-ZNNIV SI | 2 | 09/1982 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 19 | Holder | 1 | 09/1982 | 13531262637 | $0.53 | ENDED | Shop at ECS Tuning | |||
| 20 | Hex Bolt | M6X12-8.8-ZNNIV | 2 | 09/1982 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 21 | Bracket | 1 | 09/1982 | 13531262748 | $2.40 | ENDED | Shop at ECS Tuning | |||
| 22 | Cable tie | L=292MM/B=4,8MM | 1 | 09/1982 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 23 | Holder | 1 | 09/1982 | 13531278734 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 23 | Fuel pipe bracket | 2 | 09/1982 | 13532446798 | Shop at ECS Tuning | |||||
| 24 | Fuel pipe bracket | 1 | 09/1982 | 13532446798 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Fuel injection k-jetronic?
- This technical diagram illustrates the Fuel injection k-jetronic within the Fuel preparation system group for the 5 Series E28 520i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Injection pipe 1st cylinder (Part #13531276580).
- Which models use the hardware listed in this Fuel injection k-jetronic?
- The hardware and components featured in the Fuel injection k-jetronic are specific to the 5 Series E28 520i produced during 1981. These technical specifications ensure that parts like the Injection pipe 1st cylinder (13531276580) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel injection k-jetronic assembly?
- Each item in the Fuel injection k-jetronic corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Injection pipe 1st cylinder by locating its position on the schematic, which then links to the official BMW part number 13531276580 for the Fuel preparation system section.
