Carburetor cap/piston/float for BMW 2500-3.3Li 2500 (1971)

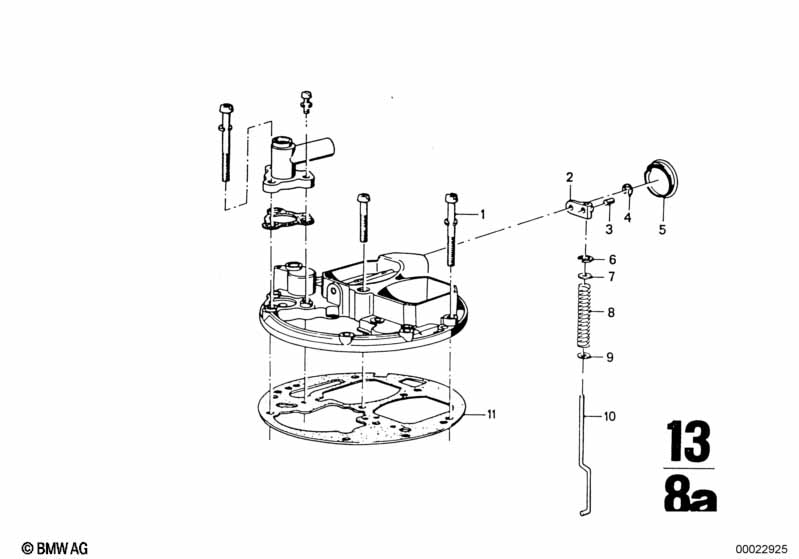

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister head screw | 10 | 13111260451 | ENDED | Shop at ECS Tuning | |||||
| 01 | Fillister head screw | 2 | 08/1968 | 02/1977 | 13111261054 | ENDED | Shop at ECS Tuning | |||
| 02 | Joint link | 2 | 13111257054 | $3.93 | ENDED | Shop at ECS Tuning | ||||
| 03 | Grub screw | 2 | 13111257055 | ENDED | Shop at ECS Tuning | |||||
| 04 | Circlip | 2,3 | 2 | 07119932805 | $0.28 | Shop at ECS Tuning | ||||
| 05 | Cap | 2 | 13111262649 | $9.54 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock Ring | 2 | 13110639180 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 10 | Connection rod | 2 | 13111257056 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket | 2 | 08/1968 | 02/1977 | 13111259585 | $4.34 | Shop at ECS Tuning |
