Air duct, intake silencer for BMW 3 Series F35 328Li (2011)

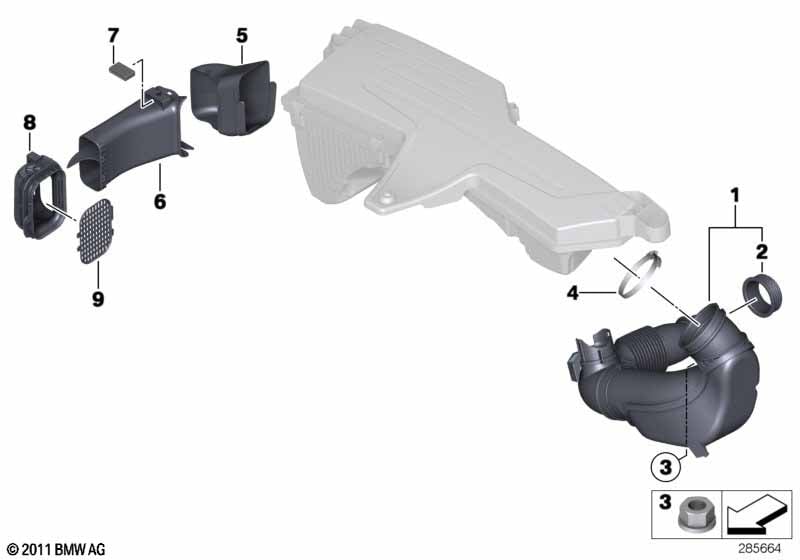

This Air duct, intake silencer technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 328Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber boot | 1 | 13717605045 | Shop at ECS Tuning | ||||||
| 02 | Gasket | 1 | 13717599291 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Intake duct | 1 | 13717597585 | Shop at ECS Tuning | ||||||
| 06 | Intake duct | 1 | 13717597584 | Shop at ECS Tuning | ||||||
| 07 | Rubber mounting | 1 | 13718573147 | Shop at ECS Tuning | ||||||
| 08 | Intake manifold, front | 1 | 13717613156 | Shop at ECS Tuning |
