Intake silencer / Filter cartridge for BMW 3 Series E36 318i (1994)

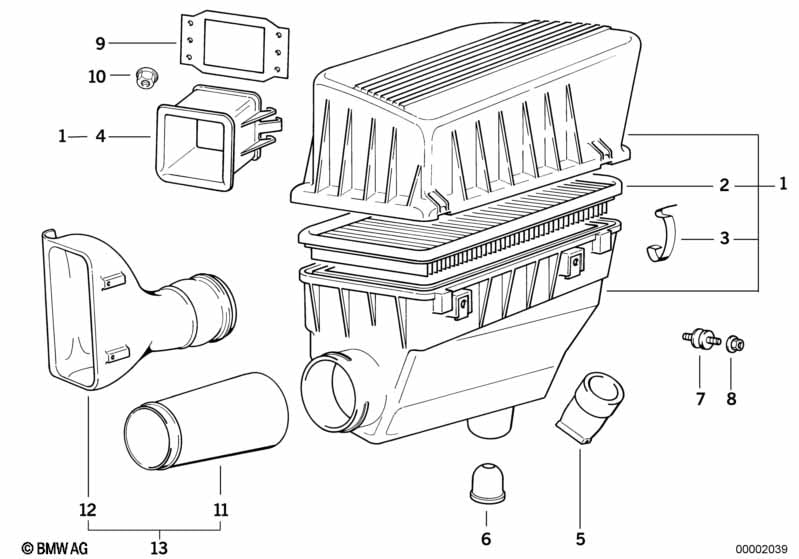

This Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake silencer | V=9,5LTR. | 1 | 03/1994 | 13711247465 | $278.31 | Shop at ECS Tuning | |||
| 02 | Air filter element | 1 | 03/1994 | 13721247404 | $26.34 | Shop at ECS Tuning | ||||
| 03 | Spring clip | L=34MM | 4 | 09/1995 | 13711707044 | $1.16 | Shop at ECS Tuning | |||
| 04 | Funnel | 1 | 03/1994 | 13711247618 | $18.80 | Shop at ECS Tuning | ||||
| 06 | Rubber buffer | 1 | 05/1999 | 13711289624 | $3.50 | ENDED | Shop at ECS Tuning | |||
| 07 | Rubber mounting | 2 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 08 | Hex nut | BM6-8-ZNFE SW | 2 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Sealing frame | 1 | 13711705064 | $0.70 | Shop at ECS Tuning | |||||
| 10 | Stop nut | M6 | 4 | 05/1999 | 51211803363 | $1.10 | ENDED | Shop at ECS Tuning | ||
| 10 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Funnel | D=45MM | 1 | 03/1994 | 13711739397 | $21.45 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 03/1994 | 13711247717 | $9.36 | Shop at ECS Tuning | ||||
| 12 | Suction tube | 1 | 03/1994 | 13711727891 | $17.95 | ENDED | Shop at ECS Tuning | |||
