Vacuum control-Engine bearing for BMW 3 Series E92 325d

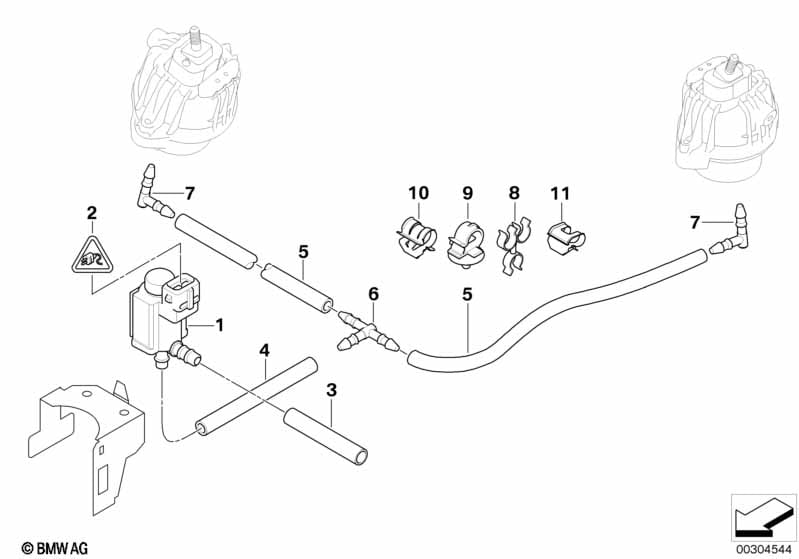

This Vacuum control-Engine bearing technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 325d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electric valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 03 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 05 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 06 | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 07 | Support | 2 | 22116759728 | $0.79 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 1 | 11742248843 | $1.18 | Shop at ECS Tuning | |||||
| 09 | Retaining clip | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 10 | Fixing clamp | 3 | 22111093424 | $0.24 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 325d Vacuum control-Engine bearing?
- This technical diagram illustrates the Vacuum control-Engine bearing within the Engine and gearbox suspension group for the 3 Series E92 325d. It provides a detailed exploded view of the components, identifying key parts such as the Electric valve (Part #11747810831).
- Which models use the hardware listed in this Vacuum control-Engine bearing?
- The hardware and components featured in the Vacuum control-Engine bearing are specific to the 3 Series E92 325d. These technical specifications ensure that parts like the Electric valve (11747810831) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control-Engine bearing assembly?
- Each item in the Vacuum control-Engine bearing corresponds to the numbered list below the illustration. For the 3 Series E92 325d, you can identify the Electric valve by locating its position on the schematic, which then links to the official BMW part number 11747810831 for the Engine and gearbox suspension section.
