Gearbox suspension for BMW 5 Series E28 535i (1987)

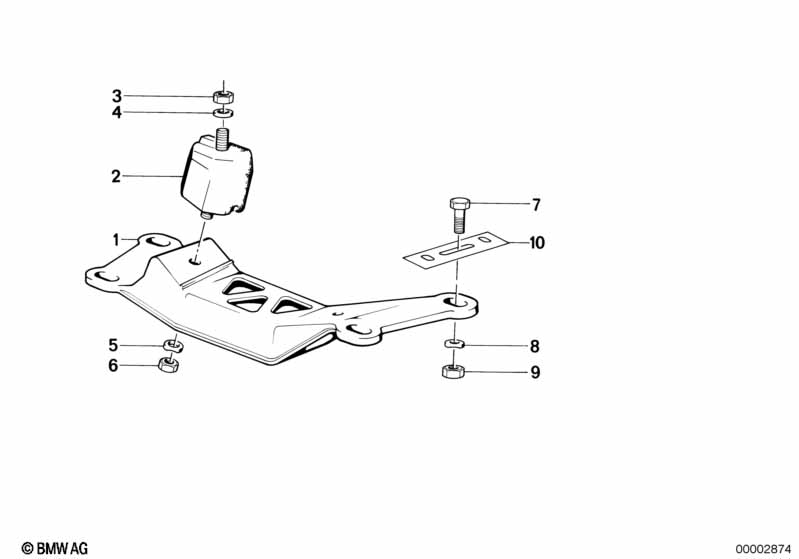

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with 5-speed sports gearbox |
=Yes |
|||||||||
| 01 | Cross member | 1 | 23711175731 | $27.71 | Shop at ECS Tuning | |||||
| For vehicles with 5 speed(overdrive)transmission |
=Yes |
|||||||||
| 01 | Cross member | 1 | 09/1985 | 23711128517 | $29.81 | Shop at ECS Tuning | ||||
| For vehicles with 5-speed sports gearbox |
=Yes |
|||||||||
| 02 | Rubber mounting | 2 | 23711175732 | $38.67 | Shop at ECS Tuning | |||||
| For vehicles with 5 speed(overdrive)transmission |
=Yes |
|||||||||
| 02 | Rubber mounting | 2 | 09/1985 | 23711175939 | $23.86 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Washer | A10,5X22 | 1 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Square headed bolt | M8X21 | 2 | 23711175689 | $0.91 | Shop at ECS Tuning | ||||
| 08 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Spacer plate | 2 | 23711128615 | $0.41 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Gearbox suspension?
- This technical diagram illustrates the Gearbox suspension within the Manual Transmission group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Cross member (Part #23711175731).
- Which models use the hardware listed in this Gearbox suspension?
- The hardware and components featured in the Gearbox suspension are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Cross member (23711175731) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox suspension assembly?
- Each item in the Gearbox suspension corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Cross member by locating its position on the schematic, which then links to the official BMW part number 23711175731 for the Manual Transmission section.
