S6s420g inner gear shifting parts for BMW 3 Series E36 M3 (1998)

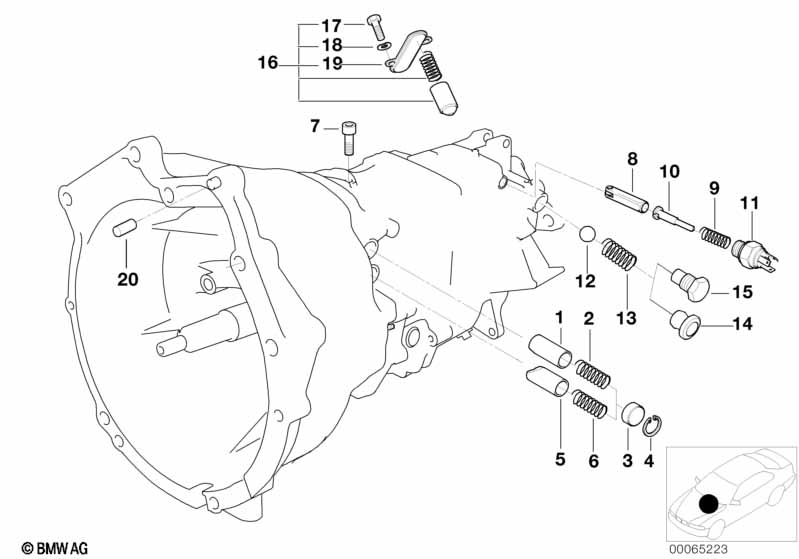

This S6s420g inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Gearbox parts for complete-repair only on request. For this repair, there is no repair-instruction or special-tool. The repair should only be made by qualified personal, at best by BMW partner organization. BMW does not assume liability and damages caused through improper repair. |
|||||||||
| 01 | Locking pin | 1 | 23111222979 | $14.67 | Shop at ECS Tuning | |||||
| 02 | Compression spring | 1 | 23311228393 | $2.80 | Shop at ECS Tuning | |||||
| 03 | Sealing Cover | 2 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 04 | Lock Ring | 20X1 | 2 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Locking pin | 1 | 23311224130 | $11.96 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 23111222720 | $5.27 | Shop at ECS Tuning | |||||
| 07 | Torx screw, micro-encapsulated | M8X25 | 1 | 23317586637 | $1.68 | Shop at ECS Tuning | ||||
| 08 | Locking pin | 1 | 10/1997 | 23317501584 | $20.83 | Shop at ECS Tuning | ||||
| 09 | Compression spring | D=1,40 | 1 | 23317511337 | $2.80 | Shop at ECS Tuning | ||||
| 10 | Thrust pin | 1 | 23311282444 | $11.49 | Shop at ECS Tuning | |||||
| 11 | Gear position indicator switch | 1 | 23142228047 | $123.92 | ENDED | Shop at ECS Tuning | ||||
| 12 | Ball | 8G20 | 1 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 13 | Compression spring | 1 | 23311228405 | $2.75 | Shop at ECS Tuning | |||||
| up to gearbox no. 6787 | ||||||||||
| 14 | Plug | 1 | 23211222728 | $5.63 | Shop at ECS Tuning | |||||
| from gearbox no. 6788 | ||||||||||
| 15 | Locking device | 1 | 23317506911 | $17.11 | Shop at ECS Tuning | |||||
| 16 | Repair kit, locking | 1 | 23317506947 | $124.60 | Shop at ECS Tuning | |||||
| 17 | Hex Bolt | M6X18 | 2 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 18 | Wave washer | B6 | 2 | 23317545770 | $0.78 | Shop at ECS Tuning | ||||
| 19 | Cap | 1 | 23211222729 | $6.75 | Shop at ECS Tuning | |||||
