A5S300J gear shifting part for BMW 3 Series E36 323i (1995)

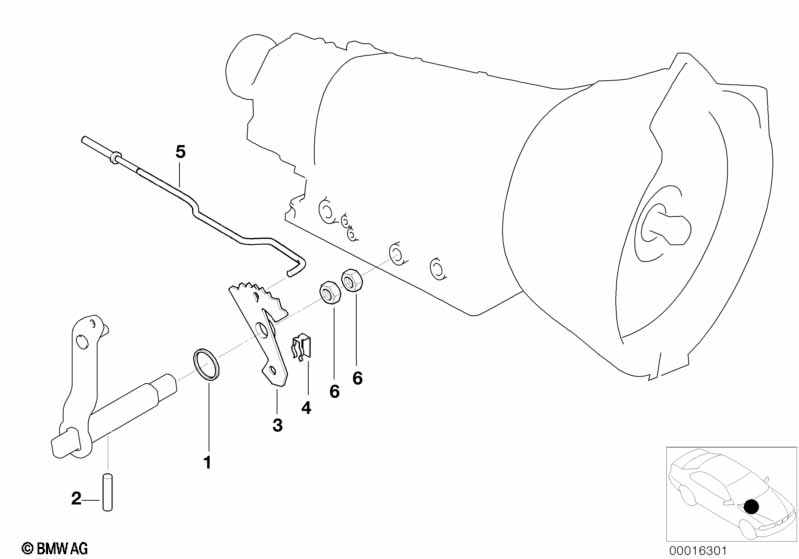

This A5S300J gear shifting part technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Japan |
L807A=Yes |
|||||||||
| 01 | Shaft seal | 1 | 24521219551 | Shop at ECS Tuning | ||||||
| 02 | Securing pin | 1 | 24521423111 | ENDED | Shop at ECS Tuning | |||||
| 03 | Locking disc | 1 | 24521422333 | ENDED | Shop at ECS Tuning | |||||
| 04 | Clip | 1 | 24521422334 | ENDED | Shop at ECS Tuning | |||||
| 05 | Selector rod | 1 | 24521423835 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex nut | 2 | 24521422336 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
