A5s325z housing with mounting parts for BMW 5 Series E39 528i (1999)

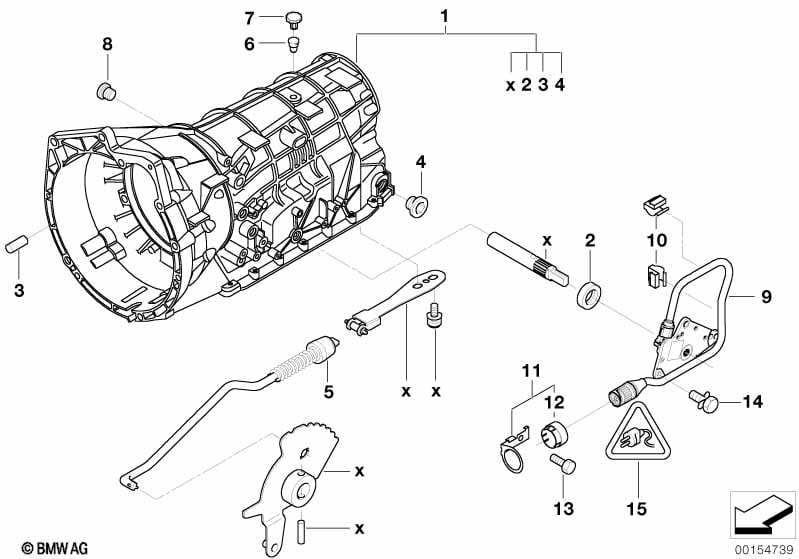

This A5s325z housing with mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Parts marked with an X are not available as single part |
|||||||||
| 01 | Gearbox housing | 1 | 09/1998 | 24101424704 | $1123.06 | +core | Shop at ECS Tuning | |||
| 02 | Shaft seal | 10X18X5 | 1 | 09/1998 | 24147571213 | $5.20 | Shop at ECS Tuning | |||
| 03 | Dowel pin | 8M6X24 | 1 | 09/1998 | 24411218031 | $2.38 | Shop at ECS Tuning | |||
| 04 | Screw plug with gasket ring | M18X1,5 | 1 | 09/1998 | 24117552349 | $7.65 | Shop at ECS Tuning | |||
| 05 | Connection rod | 1 | 09/1998 | 24521423367 | $16.32 | Shop at ECS Tuning | ||||
| 06 | Vent pipe | 1 | 09/1998 | 24101422141 | $5.93 | Shop at ECS Tuning | ||||
| 07 | Vent cover | 1 | 09/1998 | 24101422142 | $1.95 | Shop at ECS Tuning | ||||
| 08 | Screw plug with gasket ring | M10X1 | 1 | 09/1998 | 24117552351 | $4.60 | Shop at ECS Tuning | |||
| 09 | Position switch | 1 | 09/1998 | 24107507818 | $288.45 | +core | Shop at ECS Tuning | |||
| 10 | Cable clamp | 2 | 09/1998 | 24101421795 | $0.85 | Shop at ECS Tuning | ||||
| 11 | Bracket | 1 | 09/1998 | 24101423285 | $6.05 | Shop at ECS Tuning | ||||
| 12 | Connecting sleeve | 1 | 09/1998 | 24101423242 | $1.68 | Shop at ECS Tuning | ||||
| 13 | Hex Bolt | M8X16 | 1 | 09/1998 | 24101423379 | $5.20 | Shop at ECS Tuning | |||
| 14 | Hexagon bolt | M6X20 | 2 | 09/1998 | 24105A67389 | Shop at ECS Tuning | ||||
| 15 | Plug housing | 10-POL | 1 | 09/1998 | 12521740615 | $5.52 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Grommet | 1 | 09/1998 | 12521703522 | $3.37 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i A5s325z housing with mounting parts?
- This technical diagram illustrates the A5s325z housing with mounting parts within the Automatic transmission group for the 5 Series E39 528i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Gearbox housing (Part #24101424704).
- Which models use the hardware listed in this A5s325z housing with mounting parts?
- The hardware and components featured in the A5s325z housing with mounting parts are specific to the 5 Series E39 528i produced during 1999. These technical specifications ensure that parts like the Gearbox housing (24101424704) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the A5s325z housing with mounting parts assembly?
- Each item in the A5s325z housing with mounting parts corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Gearbox housing by locating its position on the schematic, which then links to the official BMW part number 24101424704 for the Automatic transmission section.
