Fork bridge for BMW R45-R65LS..78-85 R65

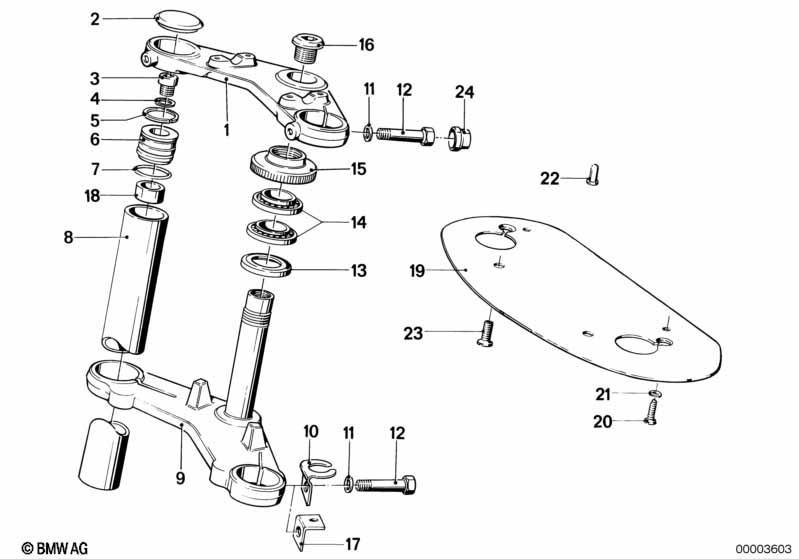

This Fork bridge technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper fork cross brace | 1 | 31421237191 | $124.48 | Shop at ECS Tuning | |||||
| 02 | Cover | 2 | 31421239765 | $4.73 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | M10X12 | 2 | 72118108712 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Snap ring | 27.5X1.5 | 2 | 31421239029 | $2.74 | ENDED | Shop at ECS Tuning | |||
| 06 | Spring retainer | 2 | 31421237208 | $10.14 | Shop at ECS Tuning | |||||
| 07 | O-ring | 22.2X3 | 2 | 31421237245 | $1.12 | Shop at ECS Tuning | ||||
| 08 | Stanchion | 2 | 31421237196 | $460.09 | +core | Shop at ECS Tuning | ||||
| 09 | Lower fork cross brace | 1 | 31421237192 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 1 | 34321237255 | $1.39 | Shop at ECS Tuning | |||||
| 11 | Washer | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 12 | Hex Bolt | M10X45-8.8-ZNS3 | 4 | 07119901169 | $2.36 | ENDED | Shop at ECS Tuning | |||
| 13 | Ring | 1 | 31421234509 | $3.03 | Shop at ECS Tuning | |||||
| 14 | Tapered roller bearing | 28X52X16 | 2 | 31427663941 | $68.65 | +core | Shop at ECS Tuning | |||
| 15 | Knirled nut | M28X1.5 | 1 | 31421237244 | $52.27 | ENDED | Shop at ECS Tuning | |||
| 16 | Screw | 1 | 31421237243 | $30.89 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
