Steering column-bearing sup./single part for BMW 7 Series E32 735i

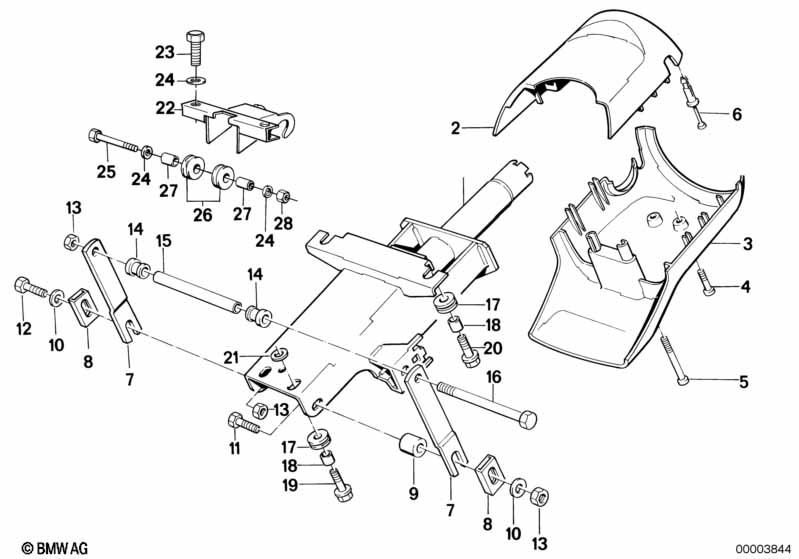

This Steering column-bearing sup./single part technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | |||||||||
| 01 | Supporting bracket | 1 | 07/1990 | 32311158591 | $68.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel, upper part | 1 | 09/1987 | 32311156381 | $82.75 | Shop at ECS Tuning | ||||
| 02 | Trim panel, upper part | 1 | 09/1987 | 07/1990 | 32311158287 | $76.30 | Shop at ECS Tuning | |||
| 03 | Lower trim panel | 1 | 07/1990 | 32311156475 | $73.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head screw | M5X12-Z3-ZN | 2 | 07/1990 | 07119906816 | $0.18 | Shop at ECS Tuning | |||
| 04 | Screw, self tapping | 5X15 | 2 | 07/1990 | 32311158376 | $0.23 | Shop at ECS Tuning | |||
| 05 | Fillister head screw | M5X35-Z3 | 2 | 07/1990 | 07119906833 | $0.24 | Shop at ECS Tuning | |||
| 05 | Screw, self tapping | 5X45 | 2 | 07/1990 | 32311158356 | $1.41 | Shop at ECS Tuning | |||
| 06 | Expanding rivet | 2 | 07/1990 | 32311156232 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Lever | 2 | 07/1990 | 32311156829 | $2.10 | ENDED | Shop at ECS Tuning | |||
| 08 | Sleeve | 2 | 07/1990 | 32311154416 | $0.48 | Shop at ECS Tuning | ||||
| 09 | Spacer bush | 1 | 07/1990 | 32311156709 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 8,4X24X2-ZNS3 | 2 | 07/1990 | 07119904164 | $0.40 | Shop at ECS Tuning | |||
| 11 | Hex Bolt | M8X30-ZN | 1 | 07/1990 | 07119913662 | $0.22 | Shop at ECS Tuning | |||
| 11 | Hex Bolt | M8X30 | 1 | 07/1990 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 12 | Hex Bolt | M8X22-8.8-ZNS3 | 1 | 07/1990 | 07119904040 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 07/1990 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 14 | Bush bearing | 2 | 07/1990 | 32311153860 | $0.70 | Shop at ECS Tuning | ||||
| 15 | Spacer | 1 | 07/1990 | 32301154350 | $2.27 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex Bolt | M8X110-8.8 | 1 | 07/1990 | 07119906728 | Shop at ECS Tuning | ||||
| 17 | Guide bush | 3 | 07/1990 | 32311093601 | $0.48 | Shop at ECS Tuning | ||||
| 18 | Spacer tube | 3 | 07/1990 | 32311111186 | $0.88 | Shop at ECS Tuning | ||||
| 19 | Fracture bolt | M8X28 9.8 | 1 | 07/1990 | 32311158528 | $1.83 | Shop at ECS Tuning | |||
| 20 | Hex Bolt with washer | M8X22-Z3 | 2 | 07/1990 | 07119915064 | $0.35 | ENDED | Shop at ECS Tuning | ||
| 21 | Washer | 1 | 07/1990 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | |||
| 22 | Mounting | 1 | 07/1990 | 32311158448 | $21.52 | ENDED | Shop at ECS Tuning | |||
| 24 | Washer | 8,4X16X1,6-ZNNV | 4 | 07/1990 | 07119907030 | Shop at ECS Tuning | ||||
| 25 | Hex Bolt | M8X75-8.8-ZNS3 | 1 | 07/1990 | 07119906028 | Shop at ECS Tuning | ||||
| 26 | Guide bush | 2 | 07/1990 | 32311093601 | $0.48 | Shop at ECS Tuning | ||||
| 27 | Spacer tube | 2 | 09/1987 | 32311111186 | $0.88 | Shop at ECS Tuning | ||||
| 27 | Washer | A8,4 | 6 | 09/1987 | 07/1990 | 33311108205 | $0.16 | Shop at ECS Tuning | ||
| 28 | Self-locking hex nut | M8-8-ZNNIV SI | 2 | 07/1990 | 07129905767 | $0.27 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735i Steering column-bearing sup./single part?
- This technical diagram illustrates the Steering column-bearing sup./single part within the Steering group for the 7 Series E32 735i. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #32311158591).
- Which models use the hardware listed in this Steering column-bearing sup./single part?
- The hardware and components featured in the Steering column-bearing sup./single part are specific to the 7 Series E32 735i. These technical specifications ensure that parts like the Supporting bracket (32311158591) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-bearing sup./single part assembly?
- Each item in the Steering column-bearing sup./single part corresponds to the numbered list below the illustration. For the 7 Series E32 735i, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 32311158591 for the Steering section.
