Vertically adjustable steering column for BMW 3 Series E36 325i (1991)

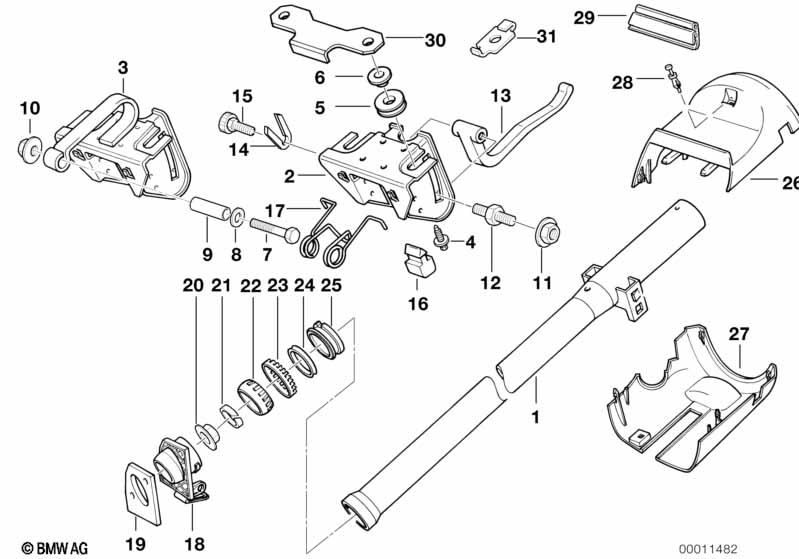

This Vertically adjustable steering column technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering column tube | 1 | 01/1995 | 32311159451 | $53.62 | Shop at ECS Tuning | ||||
| 02 | Supporting bracket | 1 | 32311159453 | $24.65 | Shop at ECS Tuning | |||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 03 | Supporting bracket | 1 | 32311159757 | $36.86 | Shop at ECS Tuning | |||||
| 04 | Fracture bolt | M8X25 9.8 | 2 | 32311160255 | $1.81 | Shop at ECS Tuning | ||||
| 05 | Guide bush | 2 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Sleeve | L=5,25MM | 2 | 32311161899 | $0.75 | Shop at ECS Tuning | ||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 07 | Hex Bolt | M8X75-8.8-ZNS3 | 1 | 07119906028 | Shop at ECS Tuning | |||||
| 08 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Spacer bush | 1 | 32311161882 | $6.95 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M8 | 1 | 32311161644 | $1.89 | Shop at ECS Tuning | ||||
| 12 | Threaded bolt | 1 | 32311159755 | $0.68 | Shop at ECS Tuning | |||||
| 13 | Lever | 1 | 32311159457 | $8.17 | Shop at ECS Tuning | |||||
| 14 | Circlip | 1 | 32311160805 | $0.62 | Shop at ECS Tuning | |||||
| 15 | Screw | M8 LINKS | 1 | 32311159756 | $1.91 | Shop at ECS Tuning | ||||
| 16 | Stop buffer | 1 | 32311160902 | $0.53 | Shop at ECS Tuning | |||||
| 17 | Retainer spring | 1 | 32311159458 | $6.05 | Shop at ECS Tuning | |||||
| 18 | Housing | 1 | 32311159765 | $11.16 | Shop at ECS Tuning | |||||
| 19 | Gasket | 1 | 32311159767 | $1.52 | Shop at ECS Tuning | |||||
| 20 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 21 | Ring | 1 | 32311092849 | $3.40 | Shop at ECS Tuning | |||||
| 22 | Joint link ball | 1 | 32311092847 | $1.77 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ring | 1 | 32311092849 | $3.40 | Shop at ECS Tuning | |||||
| 23 | Joint link pan | 1 | 32311159764 | $1.68 | Shop at ECS Tuning | |||||
| 24 | Rubber Ring | 1 | 32311159763 | $1.12 | Shop at ECS Tuning | |||||
| 25 | Lock | 1 | 32311159761 | $1.82 | Shop at ECS Tuning | |||||
| 26 | Trim panel, upper part | 1 | 11/1994 | 32311093251 | $18.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ring antenna adapter | 1 | 11/1994 | 61351093295 | $7.17 | Shop at ECS Tuning | ||||
| -- | O-ring | 1 | 11/1994 | 32321094182 | $0.68 | Shop at ECS Tuning | ||||
| -- | Lower trim panel | 1 | 11/1994 | 32311093274 | $14.00 | Shop at ECS Tuning | ||||
| 27 | Lower trim panel | 1 | 11/1994 | 32311093274 | $14.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ring antenna adapter | 1 | 11/1994 | 61351093295 | $7.17 | Shop at ECS Tuning | ||||
| -- | O-ring | 1 | 11/1994 | 32321094182 | $0.68 | Shop at ECS Tuning | ||||
| -- | Trim panel, upper part | 1 | 11/1994 | 32311093251 | $18.00 | Shop at ECS Tuning | ||||
| 28 | Clamp | 3 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 29 | Cover | 1 | 32311160677 | $5.82 | Shop at ECS Tuning | |||||
