Hydro steering-oil pipes for BMW 7 Series E65 750i (2004)

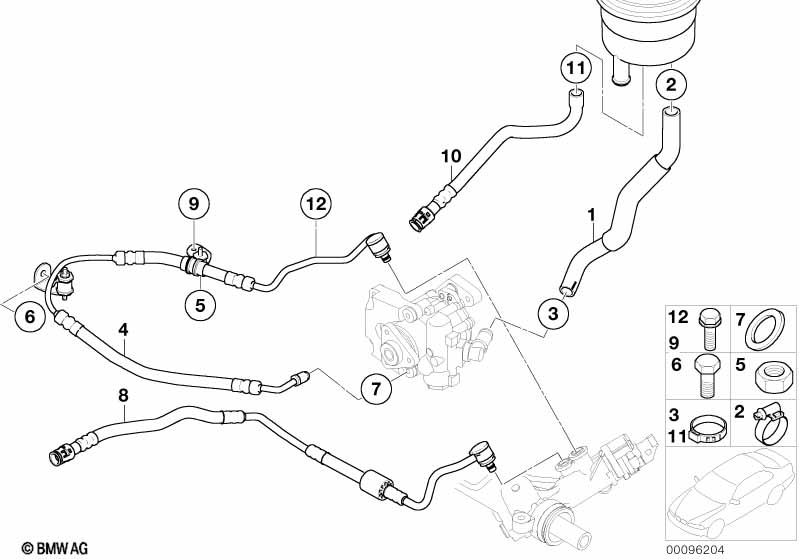

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sports package and Chassis & suspens. setup"Adaptive Drive" |
P330A=No S2VAA=No |
|||||||||
| 01 | Suction pipe | 1 | 32416762623 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 04 | Expansion hose | 1 | 32416773934 | Shop at ECS Tuning | ||||||
| 06 | Hex Bolt | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Return pipe | 1 | 32416753836 | Shop at ECS Tuning | ||||||
| 10 | Radiator return line | 1 | 32416767487 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 12 | Hex Bolt with washer | M6X20 | 1 | 07/2007 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 12 | Hex Bolt with washer | M6X20-U1-ZNS3 | 1 | 07119903849 | $1.05 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 750i Hydro steering-oil pipes?
- This technical diagram illustrates the Hydro steering-oil pipes within the Steering group for the 7 Series E65 750i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Suction pipe (Part #32416762623).
- Which models use the hardware listed in this Hydro steering-oil pipes?
- The hardware and components featured in the Hydro steering-oil pipes are specific to the 7 Series E65 750i produced during 2004. These technical specifications ensure that parts like the Suction pipe (32416762623) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-oil pipes assembly?
- Each item in the Hydro steering-oil pipes corresponds to the numbered list below the illustration. For the 7 Series E65 750i, you can identify the Suction pipe by locating its position on the schematic, which then links to the official BMW part number 32416762623 for the Steering section.
