Hydro steering-oil pipes for BMW 5 Series E60 530i (2006)

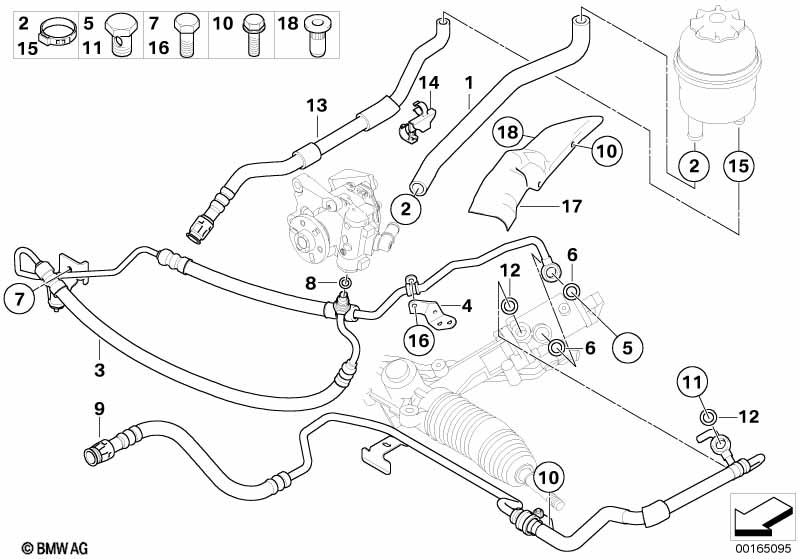

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering or Dynamic Drive |
S217A=No S229A=No |
|||||||||
| 01 | Suction pipe | 1 | 32416850285 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Expansion hose | 1 | 32416780500 | $280.40 | Shop at ECS Tuning | |||||
| 04 | Bracket, expansion hose | 1 | 32416782024 | $2.79 | Shop at ECS Tuning | |||||
| 05 | Banjo bolt with check valve | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex Bolt | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Return pipe | 1 | 32416796353 | Shop at ECS Tuning | ||||||
| 10 | Hex Bolt with washer | M6X20 | 2 | 07/2007 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 10 | Hex Bolt with washer | M6X20-U1-ZNS3 | 2 | 07119903849 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 11 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 13 | Radiator return line | 1 | 32416796355 | Shop at ECS Tuning | ||||||
| 14 | Bracket, coolant hose | 1 | 17127549717 | $5.77 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 16 | Hex Bolt | M6X15-U1-8.8 | 1 | 07119902937 | $0.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
