Air spring strut, rear/control units for BMW 7 Series G11 LCI 730dX (2020)

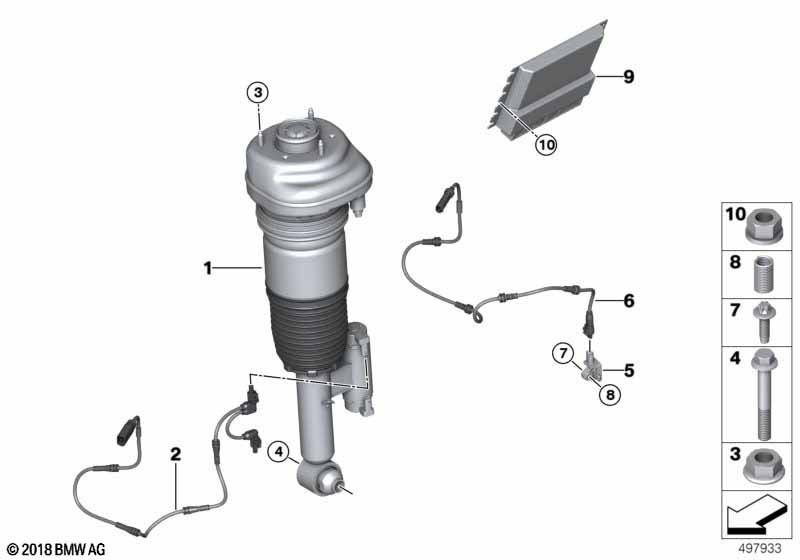

This Air spring strut, rear/control units technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air spring strut, rear left | 1 | 37107915953 | Shop at ECS Tuning | ||||||
| 01 | Air spring strut, rear right | 1 | 37107915954 | Shop at ECS Tuning | ||||||
| 02 | Adapter cable VDC, left | 1 | 37106869075 | Shop at ECS Tuning | ||||||
| 02 | Adapter cable VDC, right | 1 | 37106869076 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M8-10 ZNS3 | 6 | 33506883897 | Shop at ECS Tuning | |||||
| 04 | Hex Bolt with washer | M16X1,5X110 | 2 | 07119907031 | $4.80 | Shop at ECS Tuning | ||||
| For vehicles with Executive Drive Pro |
S2VSA=Yes |
|||||||||
| 05 | Accelerating sensor | 2 | 37146861319 | Shop at ECS Tuning | ||||||
| 06 | Cable, wheel acceleration sensor | 2 | 37146861346 | Shop at ECS Tuning | ||||||
| 07 | Torx bolt | 2 | 11127624088 | Shop at ECS Tuning | ||||||
| 08 | Heli-Coil threaded insert | M6 | 2 | 07149365479 | Shop at ECS Tuning | |||||
| 09 | Control unit VDP | HIGH2 | 1 | 07/2021 | 37148835393 | ENDED | Shop at ECS Tuning | |||
| 09 | Control unit VDP | HIGH | 1 | 07/2023 | 37148858487 | ENDED | Shop at ECS Tuning | |||
| 09 | Control unit VDP | HIGH | 1 | 37148867449 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
