Brake servo unit/Mounting for BMW 5 Series E12 530i

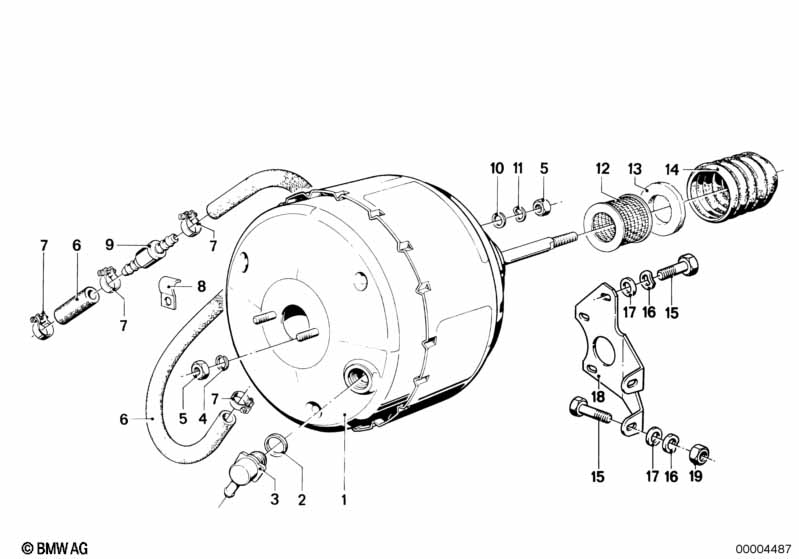

This Brake servo unit/Mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | T 51 | 1 | 34331112520 | $632.23 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket ring | 1 | 34331103244 | $7.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket ring | 1 | 34331103314 | $3.32 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connector | 1 | 34331103261 | $20.43 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8-8-ZNS3 | 6 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 07 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 08 | Clamp | 1 | 17221115867 | $0.96 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clamp | 1 | 34331110005 | ENDED | Shop at ECS Tuning | |||||
| 09 | Non-return valve | 1 | 34331151533 | Shop at ECS Tuning | ||||||
| 10 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Air cleaner | 1 | 34334650141 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 13 | Damper | 1 | 34334650147 | $7.88 | Shop at ECS Tuning | |||||
| 14 | Protection cap | 1 | 34334650142 | $12.36 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex Bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 16 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Washer | 6 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 18 | Holder | 1 | 34331110843 | ENDED | Shop at ECS Tuning | |||||
| 19 | Hex nut | M8-8-ZNS3 | 4 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 19 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
