Brake pipe front ABS for BMW 3 Series E36 318is (1992)

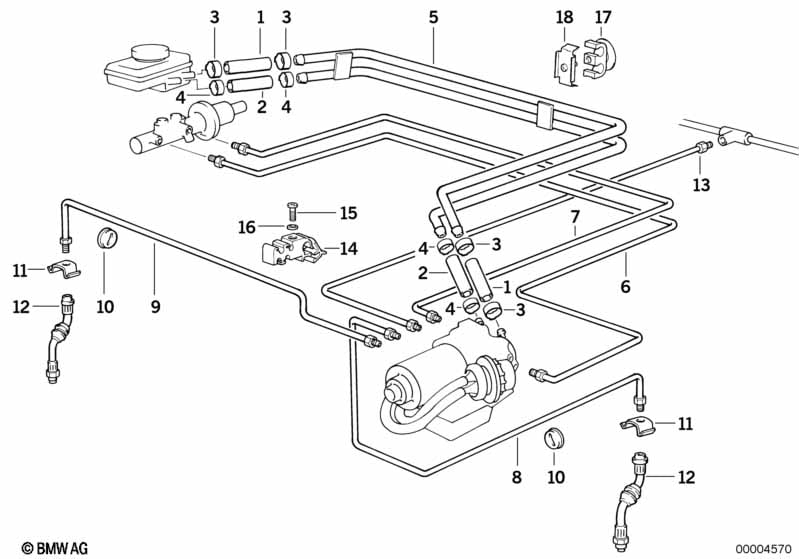

This Brake pipe front ABS technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 10X16 | X | 09/1994 | 34321160265 | $16.53 | Shop at ECS Tuning | |||
| 02 | Hose | 2 | 09/1994 | 34321161000 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 15,0-17,5 | 4 | 09/1994 | 16121180241 | $1.76 | Shop at ECS Tuning | |||
| 04 | Hose clamp | 12,8-15,3 | 4 | 09/1994 | 16121180240 | $0.77 | Shop at ECS Tuning | |||
| 05 | Suction pipe | 1 | 09/1994 | 34301161819 | Shop at ECS Tuning | |||||
| 06 | Pipe | M10/M10-1447MM | 1 | 09/1994 | 34326755623 | $10.03 | Shop at ECS Tuning | |||
| 07 | Pipe | M10/M10-1175MM | 1 | 09/1994 | 34326755612 | $8.65 | Shop at ECS Tuning | |||
| 08 | Pipe | M10/M10-963MM | 1 | 09/1994 | 34326755601 | $10.03 | Shop at ECS Tuning | |||
| 09 | Pipe | M10/M10-2074MM | 1 | 34326755651 | $10.03 | Shop at ECS Tuning | ||||
| 10 | Rubber grommet | 2 | 09/1994 | 34331161163 | $1.53 | Shop at ECS Tuning | ||||
| 11 | Clip | 2 | 09/1994 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 12 | Brake hose front | 2 | 09/1994 | 34321159717 | $39.55 | Shop at ECS Tuning | ||||
| 13 | Pipe | M10/M10-2039MM | 1 | 09/1994 | 34326755649 | $10.03 | Shop at ECS Tuning | |||
| 14 | Brake pipe bracket | 2 | 09/1994 | 34301166122 | Shop at ECS Tuning | |||||
| 15 | Screw, self tapping | M4X13 | 2 | 09/1994 | 34321161389 | $0.08 | Shop at ECS Tuning | |||
| 16 | Washer | 4,3 | 2 | 09/1994 | 07119936412 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 17 | Clamp | 2 | 09/1994 | 34321160738 | Shop at ECS Tuning | |||||
| 18 | Holder | 2 | 09/1994 | 34321160929 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Brake pipe front ABS?
- This technical diagram illustrates the Brake pipe front ABS within the Brakes group for the 3 Series E36 318is produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Hose (Part #34321160265).
- Which models use the hardware listed in this Brake pipe front ABS?
- The hardware and components featured in the Brake pipe front ABS are specific to the 3 Series E36 318is produced during 1992. These technical specifications ensure that parts like the Hose (34321160265) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe front ABS assembly?
- Each item in the Brake pipe front ABS corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Hose by locating its position on the schematic, which then links to the official BMW part number 34321160265 for the Brakes section.
