Front brake-brake pipe for BMW R45-R65LS..78-85 R45

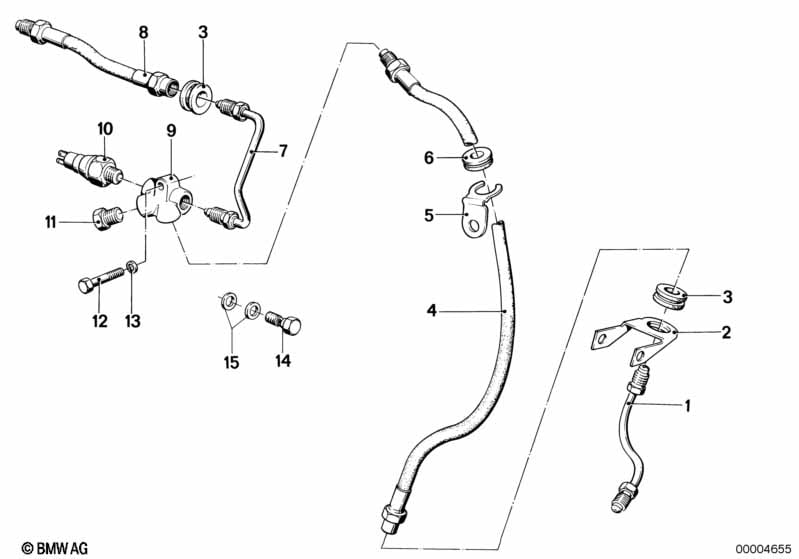

This Front brake-brake pipe technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake pipe left | 1 | 09/1981 | 34321238257 | $8.34 | Shop at ECS Tuning | ||||
| 01 | Brake pipe right | 1 | 09/1981 | 34321238258 | $8.34 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | 1 | 09/1981 | 34321237256 | $18.26 | Shop at ECS Tuning | ||||
| 03 | Grommet | 2 | 09/1981 | 34321236462 | $2.80 | Shop at ECS Tuning | ||||
| 04 | Brake hose | 470 LG. | 1 | 09/1981 | 34321239826 | $91.16 | ENDED | Shop at ECS Tuning | ||
| 04 | Brake hose | 1 | 09/1981 | 34321237261 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | 1 | 09/1981 | 34321237255 | $1.39 | Shop at ECS Tuning | ||||
| 06 | Grommet | 1 | 09/1981 | 34321237259 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Brake pipe upper | 1 | 09/1981 | 34321237236 | $10.05 | Shop at ECS Tuning | ||||
| 08 | Brake hose | 1 | 09/1981 | 34321239820 | ENDED | Shop at ECS Tuning | ||||
| 08 | Brake hose | 1 | 09/1981 | 34321239822 | ENDED | Shop at ECS Tuning | ||||
| FOR HANDLEBAR BOARD HIGH | ||||||||||
| 08 | Brake hose | 260 LG. | 1 | 09/1981 | 34321240909 | $50.46 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Hollow bolt | 1 | 09/1981 | 34321242205 | $4.47 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A10X13,5-CU | 2 | 09/1981 | 07119963072 | $0.11 | Shop at ECS Tuning | |||
| 09 | Distribution piece | 1 | 09/1981 | 34321239831 | $42.72 | Shop at ECS Tuning | ||||
| 09 | Distribution piece | 1 | 09/1981 | 34321239830 | ENDED | Shop at ECS Tuning | ||||
| 10 | Stop light switch | 1 | 09/1980 | 61311244334 | $36.58 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Gasket ring | A10X13.5-AL | 1 | 09/1980 | 07119963073 | $0.11 | Shop at ECS Tuning | |||
| 11 | Screw plug | 1 | 09/1981 | 34321236790 | $3.36 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex Bolt | M6X25 | 1 | 09/1981 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 13 | Washer | A6,4-ZNNIV SI | 1 | 09/1981 | 07119904202 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
