Power brake unit depression for BMW 5 Series E39 540iP (1998)

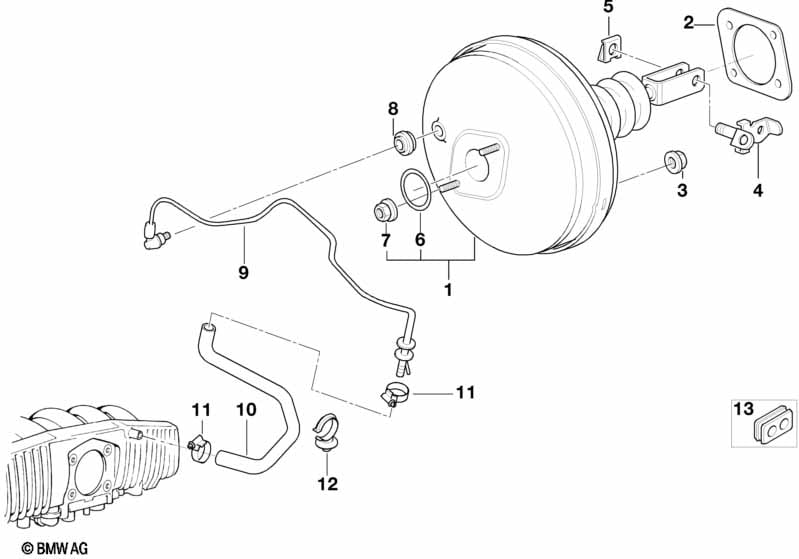

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | LSC-145 | 1 | 09/1998 | 34331165541 | $588.00 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Gasket | D=70MM | 1 | 09/1998 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/1998 | 07119905374 | Shop at ECS Tuning | ||||
| 02 | Gasket | D=70MM | 1 | 09/1998 | 35111165132 | $3.10 | Shop at ECS Tuning | |||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 09/1998 | 07119905374 | Shop at ECS Tuning | ||||
| 05 | Fuse | B10-ZNS3 | 1 | 09/1998 | 07129904567 | $0.40 | Shop at ECS Tuning | |||
| 06 | Brake master cylinder o-ring | 1 | 09/1998 | 34311165092 | $3.15 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 09/1998 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 08 | Gasket ring | 1 | 09/1998 | 34331158929 | $3.15 | Shop at ECS Tuning | ||||
| 09 | Vacuum pipe | 1 | 09/1998 | 34331165074 | ENDED | Shop at ECS Tuning | ||||
| 10 | Vacuum hose | RHD | 1 | 09/1998 | 34331166139 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | 21,3MM | 2 | 09/1998 | 11151726339 | $1.02 | Shop at ECS Tuning | |||
| 12 | Hose clamp | 1 | 09/1998 | 34301163786 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 09/1998 | 34301163209 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540iP Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 5 Series E39 540iP produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34331165541).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 5 Series E39 540iP produced during 1998. These technical specifications ensure that parts like the Power brake (34331165541) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 5 Series E39 540iP, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34331165541 for the Brakes section.
