Rear wheel brake / brake disc for BMW 3 Series F30 328iX (2012)

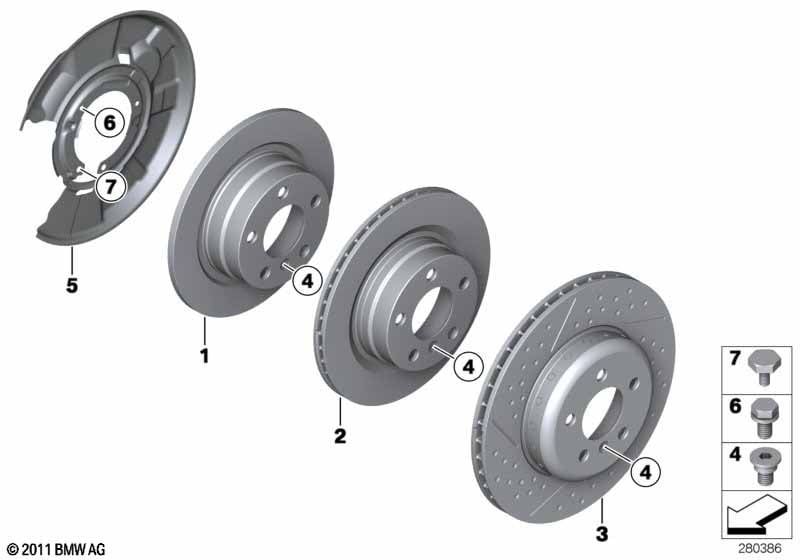

This Rear wheel brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Brake disc, ventilated | 300X20 | 2 | 34216864900 | Shop at ECS Tuning | |||||
| The following parts are also required: - Brake pads - Brake-pad wear sensor - Brake-pad paste On vehicles older than 48 months it is also recommended to: - Replace retaining spring See repair instructions. |
||||||||||
| For vehicles with M Sport brake |
S2NHA=Yes |
|||||||||
| 02 | Brake disc, lightweight, ventilated | 345X24 | 2 | 34206894382 | Shop at ECS Tuning | |||||
| The following parts are also mandatory: - brake pads - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 month s: - replace expanding spring and gui de pin see repair instructions! |
||||||||||
| For vehicles with M Sport brake Alternative part: Original BMW accessory |
S2NHA=Yes |
|||||||||
| 03 | Brake disc, ventilated, w/holes, rear | 345X24 | 2 | 34206797600 | Shop at ECS Tuning | |||||
| The following parts are also mandatory: - brake pads - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 month s: - replace expanding spring and gui de pin see repair instructions! |
||||||||||
| 04 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 05 | Protection plate left | 1 | 34216792247 | Shop at ECS Tuning | ||||||
| 05 | Protection plate right | 1 | 34216792248 | Shop at ECS Tuning | ||||||
| 06 | Hex Bolt with washer | M6X12-U1 | 4 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Hex Bolt | M8 | 4 | 34211164044 | $1.03 | Shop at ECS Tuning | ||||
