Accelerator pedal/rod assy for BMW 1502-2002tii 2002tii

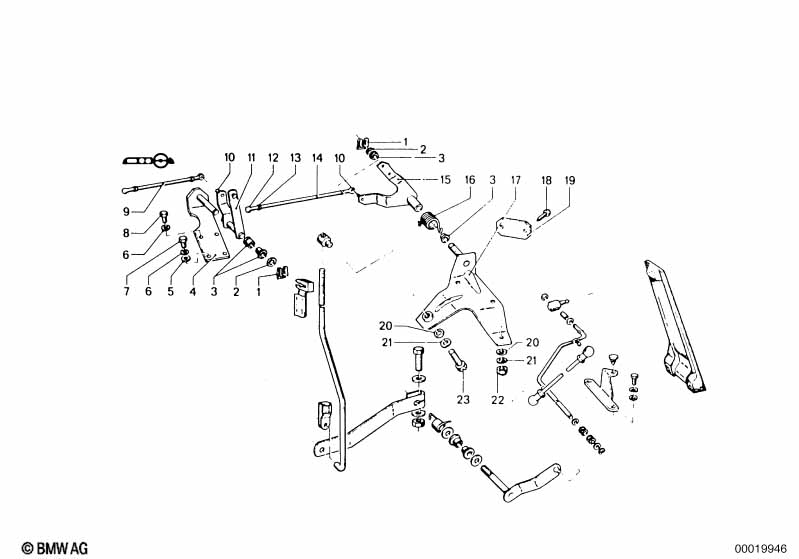

This Accelerator pedal/rod assy technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | 2 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 10-200HV-ZNNIV | 2 | 07119907114 | Shop at ECS Tuning | |||||
| 03 | Bush bearing | D=10MM | 4 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Supporting bracket | 1 | 35411109188 | $25.73 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Hex Bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Hex Bolt | M8X12 | 3 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Connection rod | 1 | 35411113788 | $33.27 | Shop at ECS Tuning | |||||
| 10 | Ball pin | B8X4 | 3 | 07119987304 | ENDED | Shop at ECS Tuning | ||||
| 11 | Lever | 1 | 35411107363 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Pull rod | 1 | 35411107367 | $62.11 | ENDED | Shop at ECS Tuning | ||||
| 15 | Lever | 1 | 35411107951 | ENDED | Shop at ECS Tuning | |||||
| 16 | Retainer spring | 1 | 35411108676 | $3.38 | Shop at ECS Tuning | |||||
| 17 | Support | 1 | 35411107607 | ENDED | Shop at ECS Tuning | |||||
| 18 | Screw, self tapping | B6,5X16 | 2 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 20 | Washer | 1 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 21 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 22 | Hex nut | M8-8-ZNS3 | 1 | 10/1975 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 22 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 23 | Hex Bolt | M8X18-8.8-ZNS3 | 1 | 07119904146 | $0.65 | Shop at ECS Tuning |
