Wheel hub mounting parts rear for BMW R45-R65LS..78-85 R45

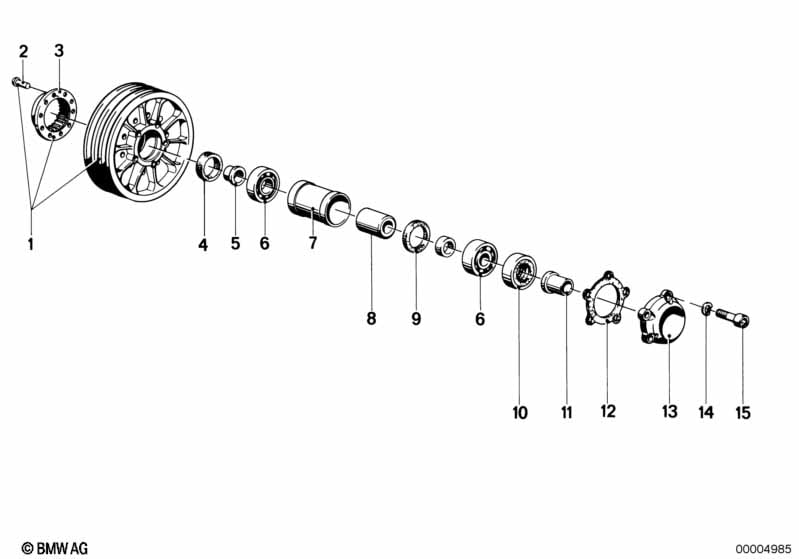

This Wheel hub mounting parts rear technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub rear | 1 | 36311232979 | $702.78 | +core | Shop at ECS Tuning | ||||
| 02 | Rivet | 6X25-ST-ZNS | X | 07119900800 | $0.56 | Shop at ECS Tuning | ||||
| 03 | Driving dog | 1 | 36311232525 | $113.09 | +core | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 1 | 36311231700 | Shop at ECS Tuning | ||||||
| 05 | Sleeve | 9,2MM | 1 | 36314038142 | $12.44 | Shop at ECS Tuning | ||||
| 06 | Tapered roller bearing | 40X17X13.25 | 2 | 07119985005 | $57.36 | Shop at ECS Tuning | ||||
| 07 | Spacer tube | 1 | 36311230324 | $13.89 | Shop at ECS Tuning | |||||
| 08 | Spacer sleeve | 1 | 36311235737 | $21.74 | Shop at ECS Tuning | |||||
| 09 | Ring | 1 | 36311235570 | $1.18 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shaft seal | 36X22X8 | 1 | 36311233247 | Shop at ECS Tuning | |||||
| 11 | Compression ring | 1 | 36311230322 | $8.67 | Shop at ECS Tuning | |||||
| 12 | Gasket | 1 | 36311232523 | $7.16 | Shop at ECS Tuning | |||||
| 13 | Cover | 1 | 36311232477 | $41.35 | Shop at ECS Tuning | |||||
| 14 | Spring washer Black | B6-ZN | 5 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Washer | 5.3-140 HV-ZNS | 5 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B6-ZNS3 | 5 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 15 | Fillister head screw | M6X30-8.8-ZNS | 5 | 31422311105 | $2.06 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
