Star-spoke styling (styl.10) for BMW 3 Series E46 318i (2004)

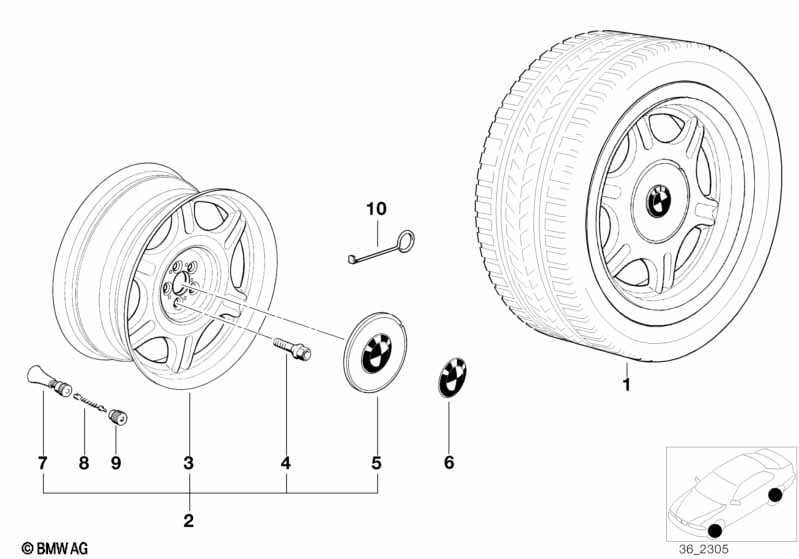

This Star-spoke styling (styl.10) technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Light alloy rim | 7JX15 ET:47 | 4 | 82119409588 | ENDED, +core, TÜV 9786349 | Shop at ECS Tuning | ||||
| 03 | Light alloy rim | 7JX15 ET:47 | 4 | 36111181483 | $248.95 | ENDED, +core, TÜV 9786349, TÜV 9789069 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | D=159MM | 4 | 36131181288 | $19.50 | ENDED | Shop at ECS Tuning | |||
| 06 | BMW plaque with adhesive film | D=58MM | 4 | 36131181081 | $5.85 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organis.)
