BMW light-alloy wheel star spokes 45 for BMW 3 Series E46 318i (2004)

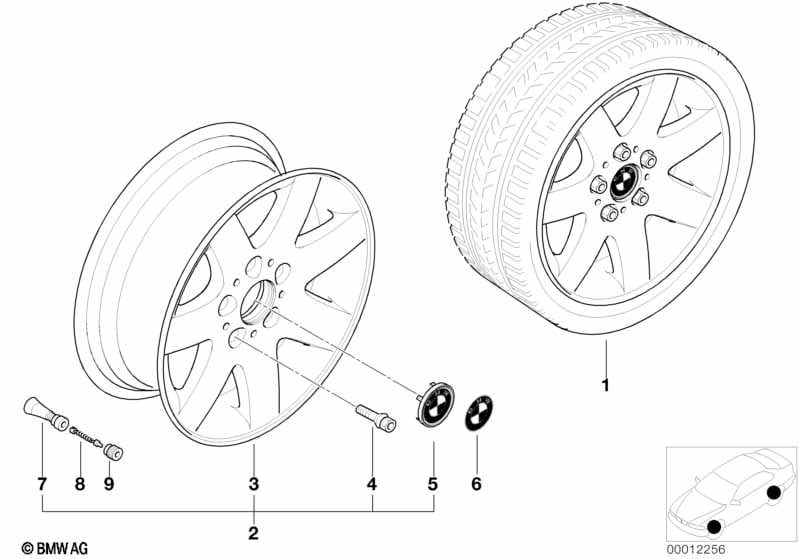

This BMW light-alloy wheel star spokes 45 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW light-alloy wheel star spokes 45 |
S279A=Yes |
||||||||
| 03 | Light alloy rim | 7JX16 ET:47 | 4 | 36111094498 | $264.95 | +core | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap with chrome edge | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i BMW light-alloy wheel star spokes 45?
- This technical diagram illustrates the BMW light-alloy wheel star spokes 45 within the Wheels group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36111094498).
- Which models use the hardware listed in this BMW light-alloy wheel star spokes 45?
- The hardware and components featured in the BMW light-alloy wheel star spokes 45 are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Light alloy rim (36111094498) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW light-alloy wheel star spokes 45 assembly?
- Each item in the BMW light-alloy wheel star spokes 45 corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36111094498 for the Wheels section.
