BMW LA wheel, V spoke 54 for BMW 3 Series E46 318i (2004)

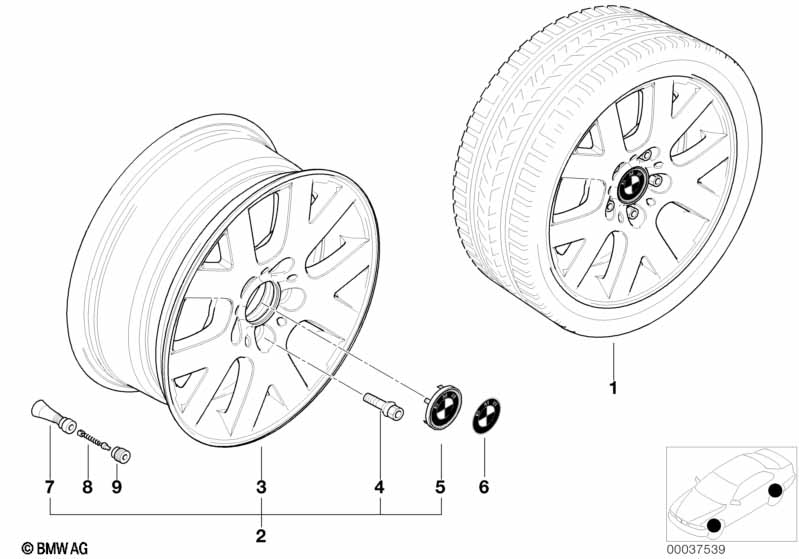

This BMW LA wheel, V spoke 54 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Light alloy rim | 7JX16 ET:47 | 4 | 36111096552 | $279.95 | Shop at ECS Tuning | ||||
| 04 | Wheel bolt black | M12X1,5 | 16 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap with chrome edge | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i BMW LA wheel, V spoke 54?
- This technical diagram illustrates the BMW LA wheel, V spoke 54 within the Wheels group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36111096552).
- Which models use the hardware listed in this BMW LA wheel, V spoke 54?
- The hardware and components featured in the BMW LA wheel, V spoke 54 are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Light alloy rim (36111096552) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel, V spoke 54 assembly?
- Each item in the BMW LA wheel, V spoke 54 corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36111096552 for the Wheels section.
